G7UFO Turret Mini Microphone for SOTA / POTA
Details
The K6ARK mini mic kit has proved very popular for OPs who like to build their own.

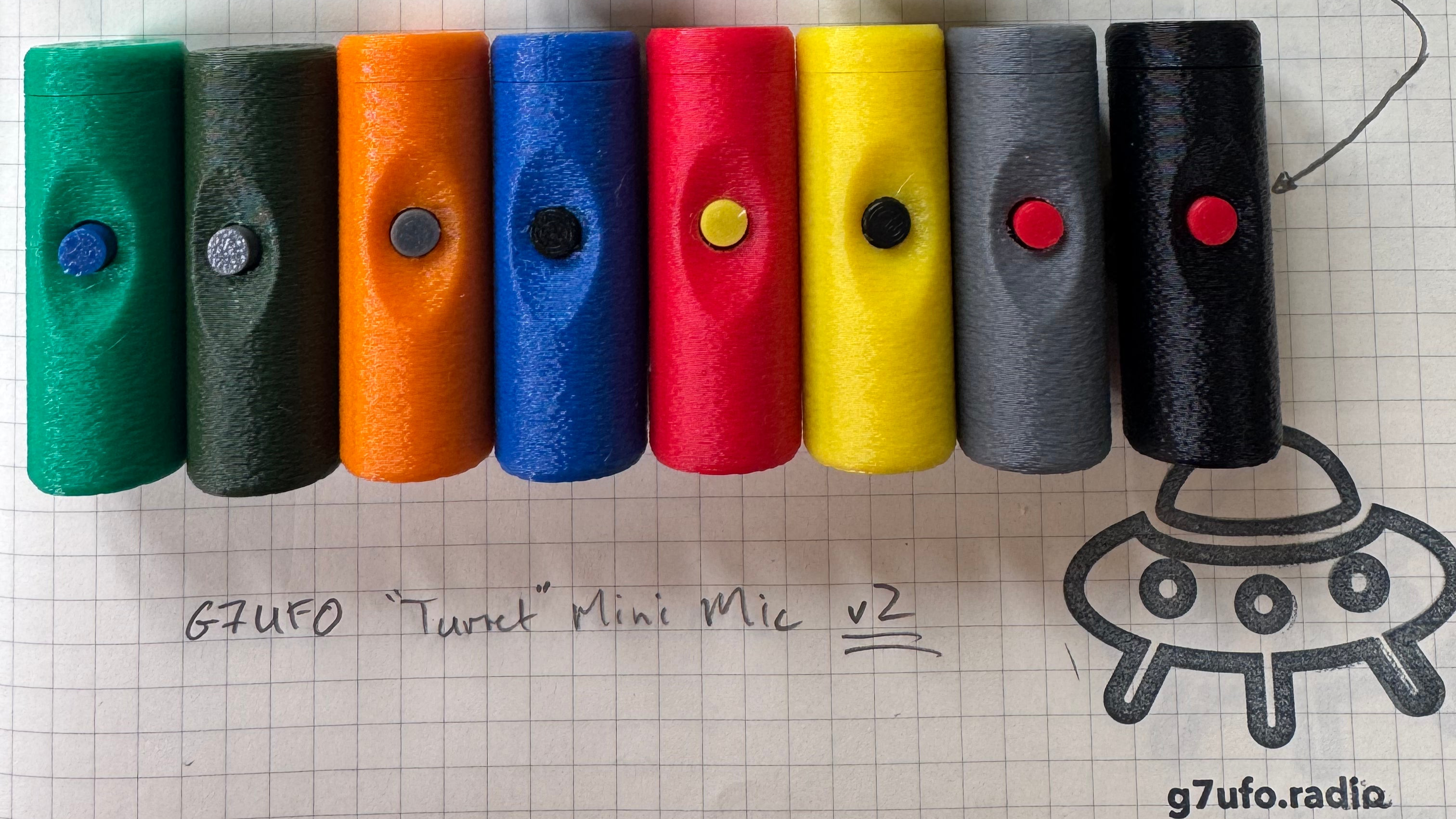

Built on the shoulders of Adams' K6ARK mini mic I've designed the Turret assembled microphone which uses essentially the same components but without the fiddly wiring.
Presented in a high heat and UV resisting PETG cylindrical case with 'bumpy' texture for improved grip. This is a great option for those who want an off the shelf backup or lightweight mic for POTA / SOTA.

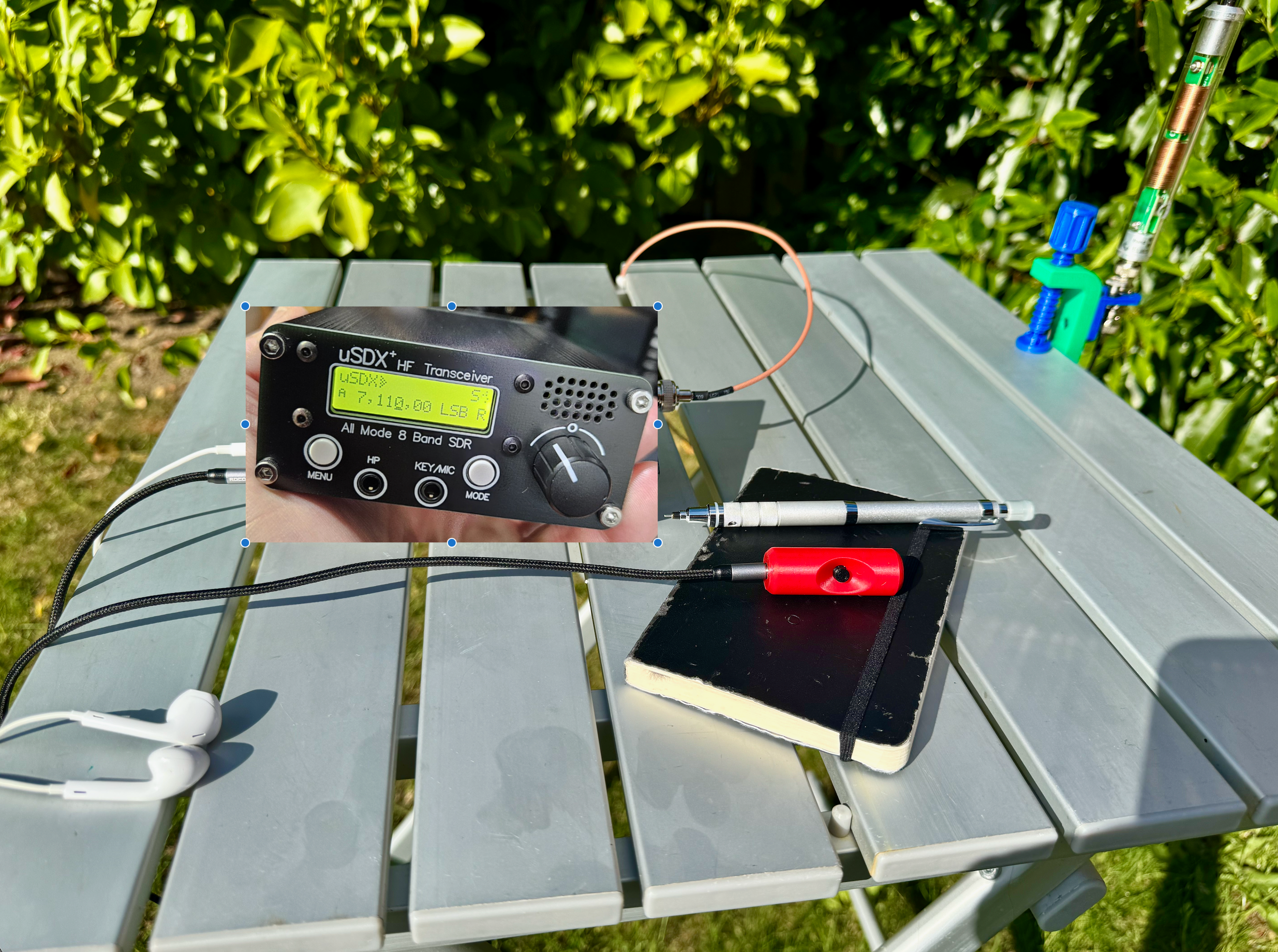

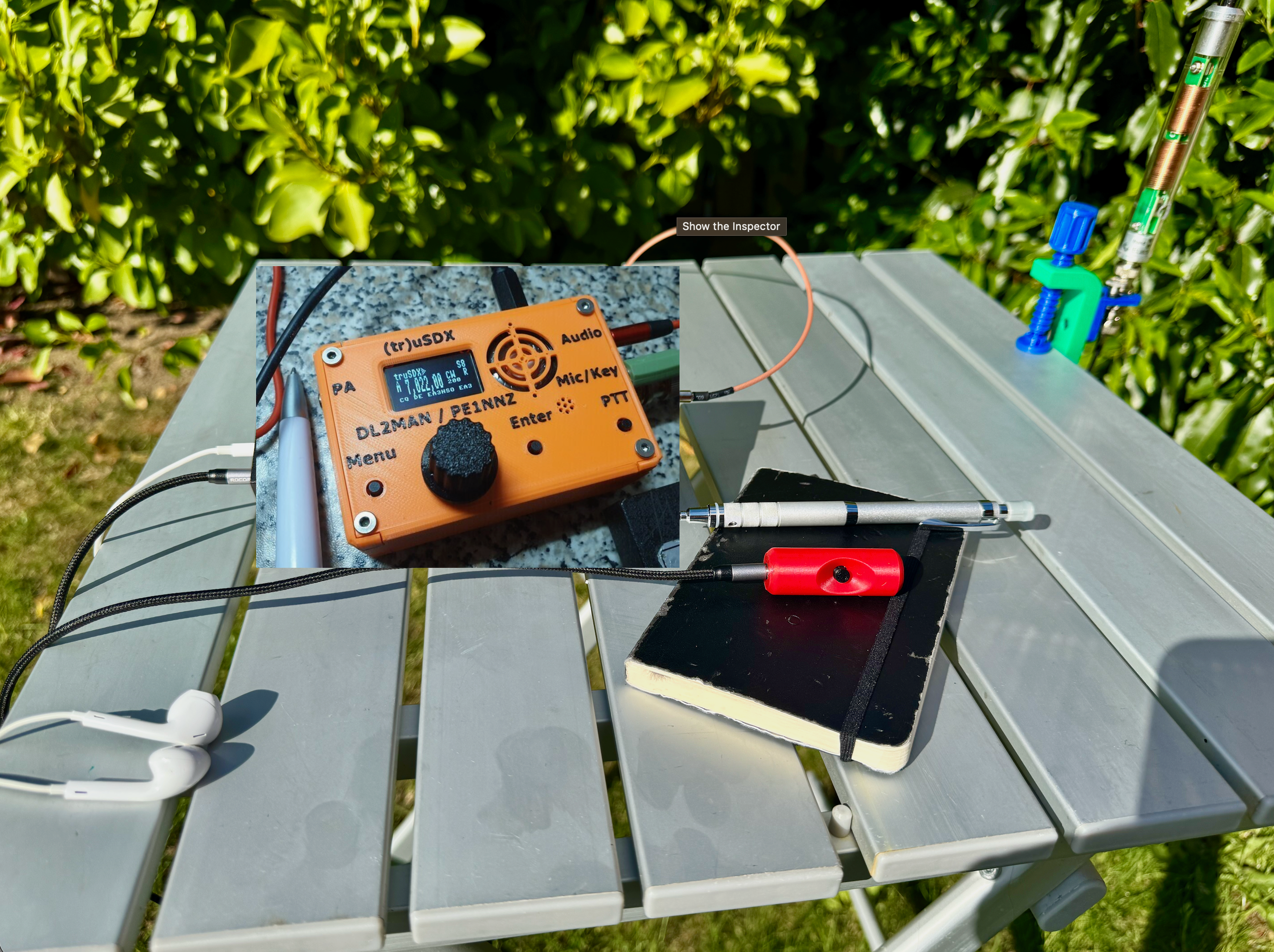

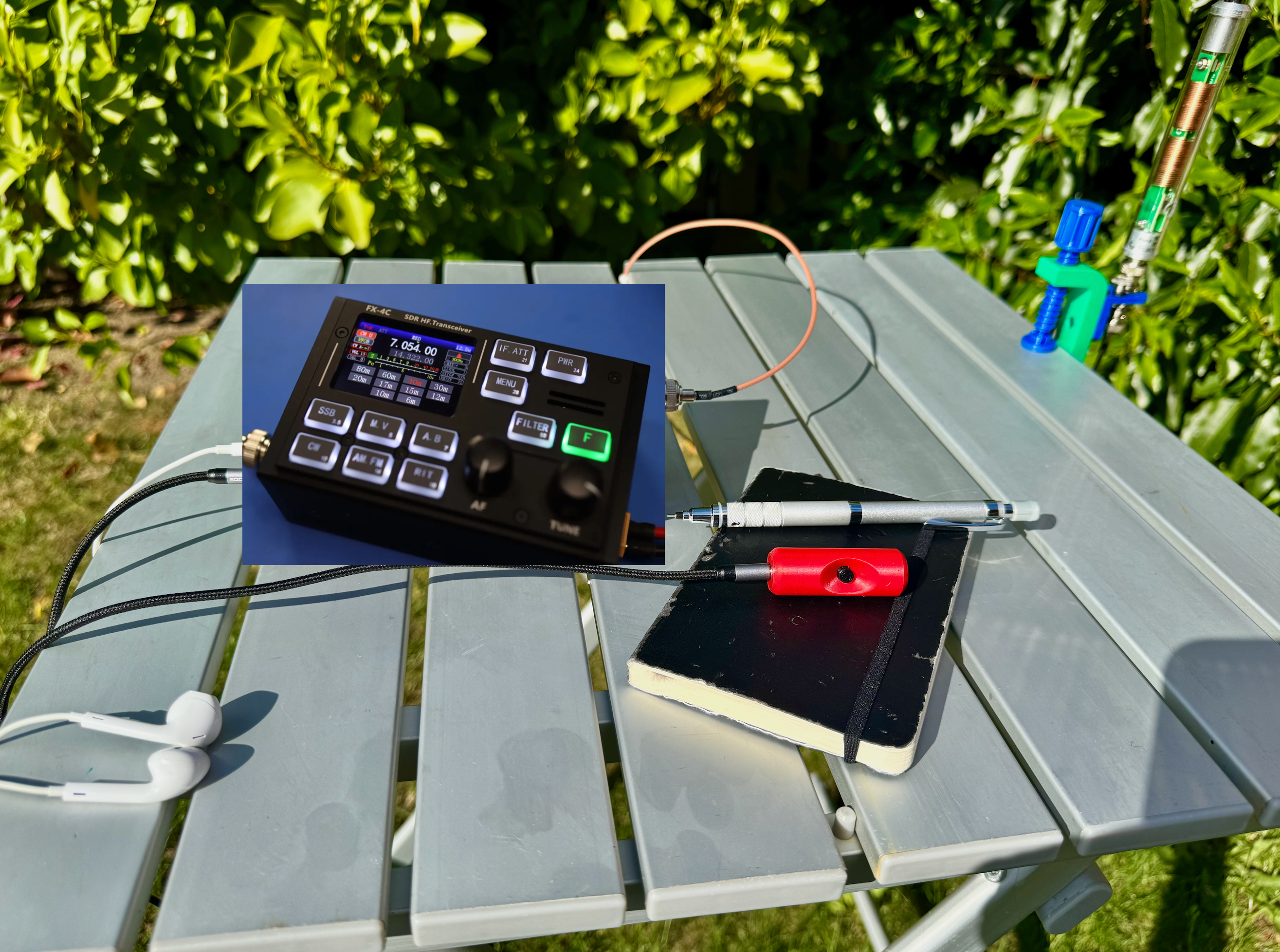

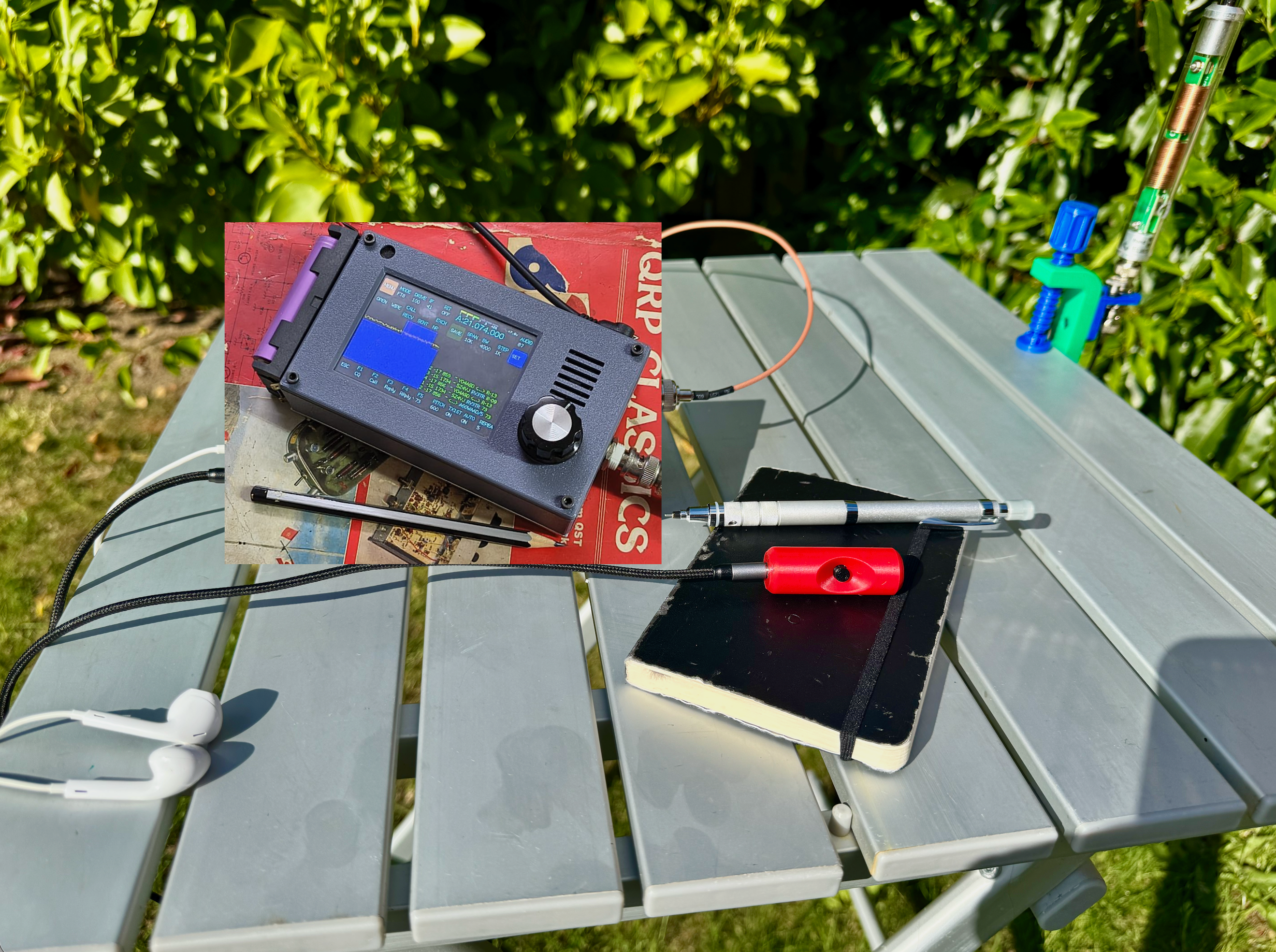

Please enjoy my photo-editing skills bellow, I don't have all the radios!
Measurements
| Height | 47mm (1.85") |
| Diameter | 10mm (0.39") |
| Weight (with 0.5m cable) | 17g (0.6oz) |
| Weight (with 1m cable) | 21g (0.74oz) |
Cross compatibility
Already own a Turret mic for a specific radio, check if it is compatible with your new radio.
|
Turret mic owned for radio → ↓ Compatible radio |
Elecraft KX2 & KX3 | QRP Labs QMX & QMX+ | HF Signals zBitx, sBitx & LARCset | BG2FX FX-4CR | (tr)uSDX | uSDX |
| Elecraft KX2 & KX3 | ✅ | ❌ | ☑️¹ | ☑️⁴ | ❌ | ❌ |
| QRP Labs QMX & QMX+ | ❌ | ✅ | ❌ | ❌ | ☑️¹ | ☑️¹ |
| HF Signals zBitx, sBitx & LARCset | ☑️⁴ | ❌ | ✅ | ☑️¹ | ❌ | ❌ |
| BG2FX FX-4CR | ☑️³ | ❌ | ☑️¹ | ✅ | ❌ | ❌ |
| (tr)uSDX | ❌ | ☑️¹ | ❌ | ❌ | ✅ | ✅ |
| uSDX | ❌ | ☑️¹ | ❌ | ❌ | ✅ | ✅ |
| uSDX clone (4 pin TRRS) | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
¹ Owned mic will have more sensitive (-24db) mic fitted so audio may be too high.
² Owned mic will have less sensitive mic fitted so audio may be too low.
³ Owned mic may have more sensitive (-24db) mic fitted so audio may be too high.
⁴ Owned mic may have less sensitive mic fitted audio may be low.
Mentions and reviews
- Walt, K4OGO on the Coastal Waves & Wires YouTube channel here and here.
- Thomas, K4SWL on QRPer.com.
-

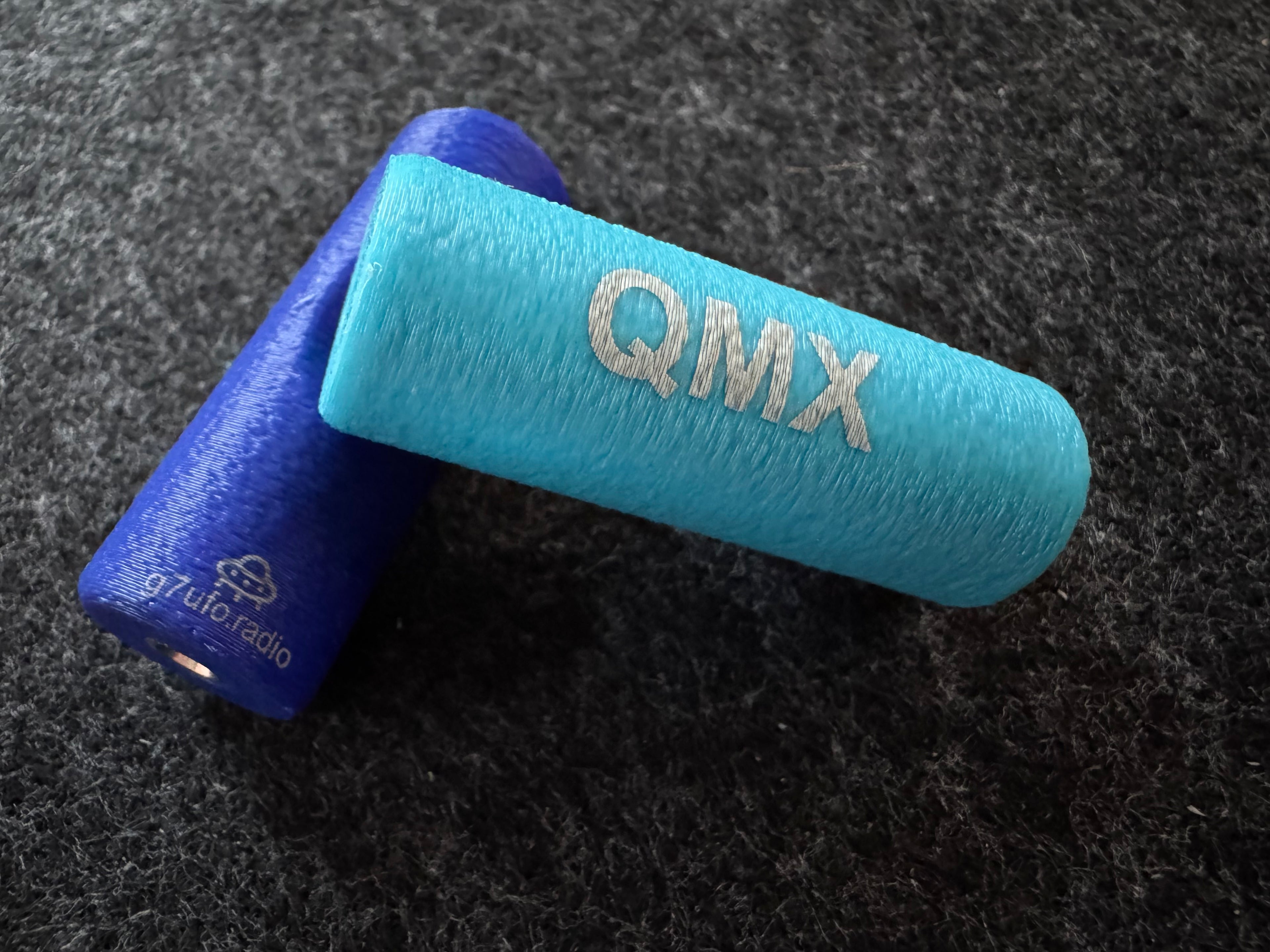

G7UFO Turret Mini Microphone for Elecraft KX2 and KX3 -
G7UFO Turret Mini Microphone for QRP Labs QMX, QMX+ -
G7UFO Turret Mini Microphone for HF Signals zBitx, sBitx & LARCset -
G7UFO Turret Mini Microphone for BG2FX FX-4CR -

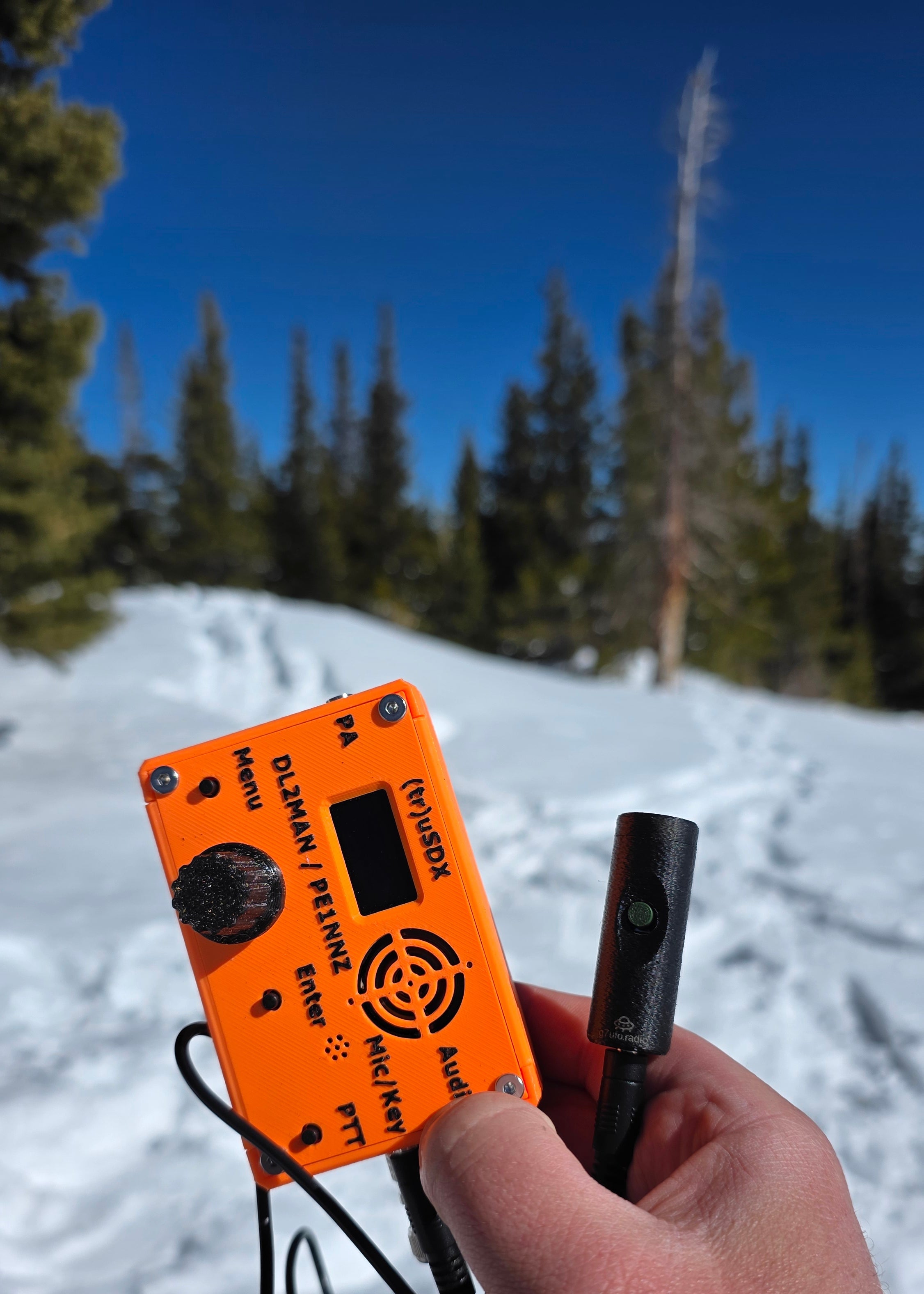

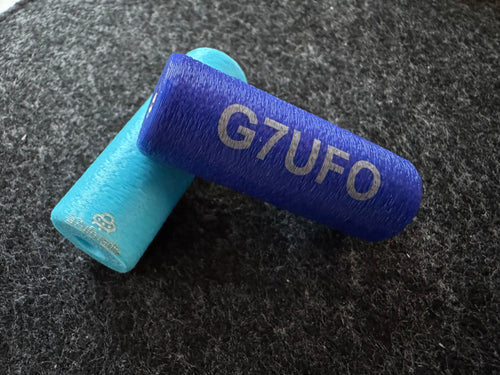

G7UFO Turret Mini Microphone for (tr)uSDX -
G7UFO Turret Mini Microphone for uSDX -

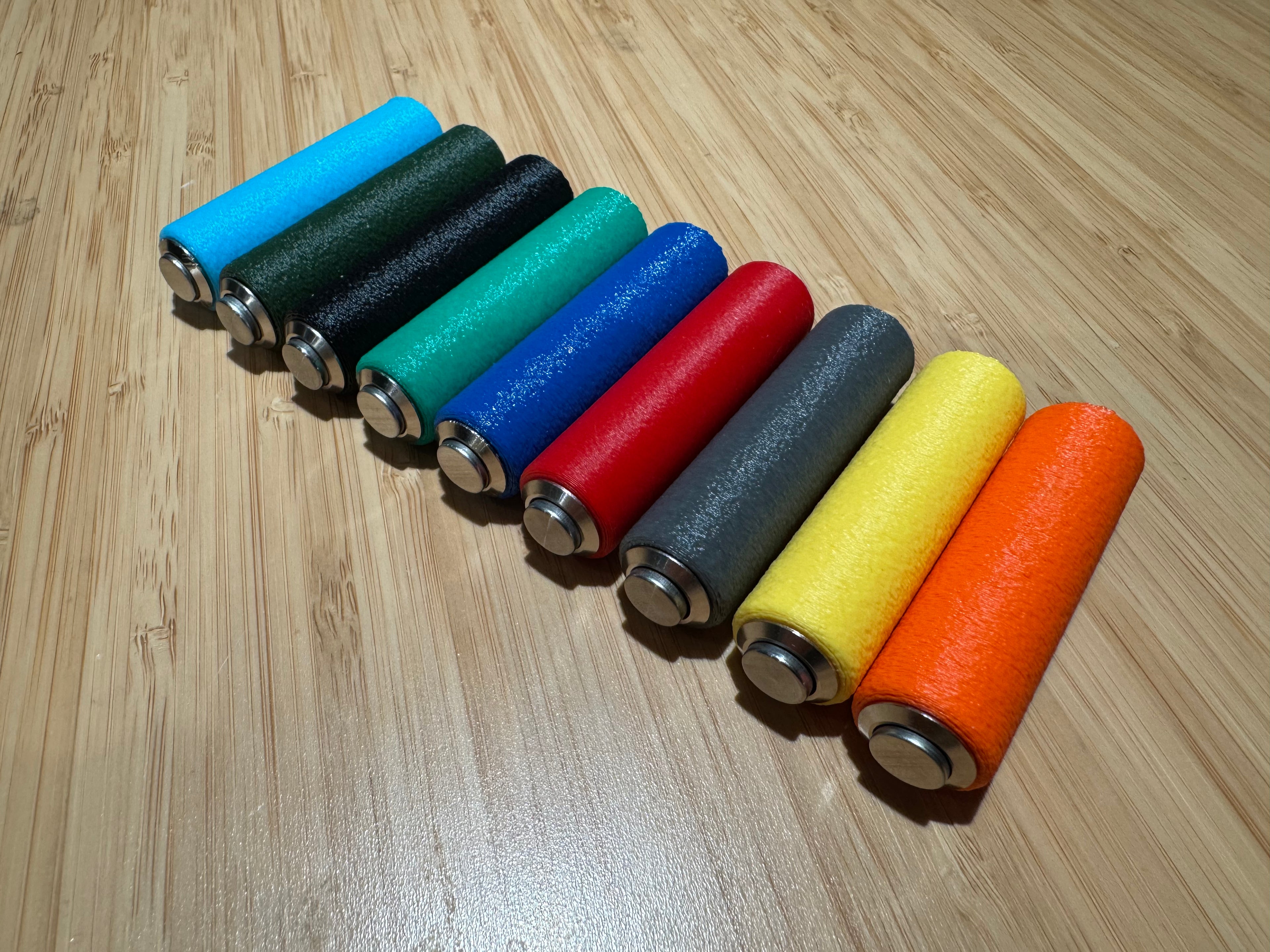

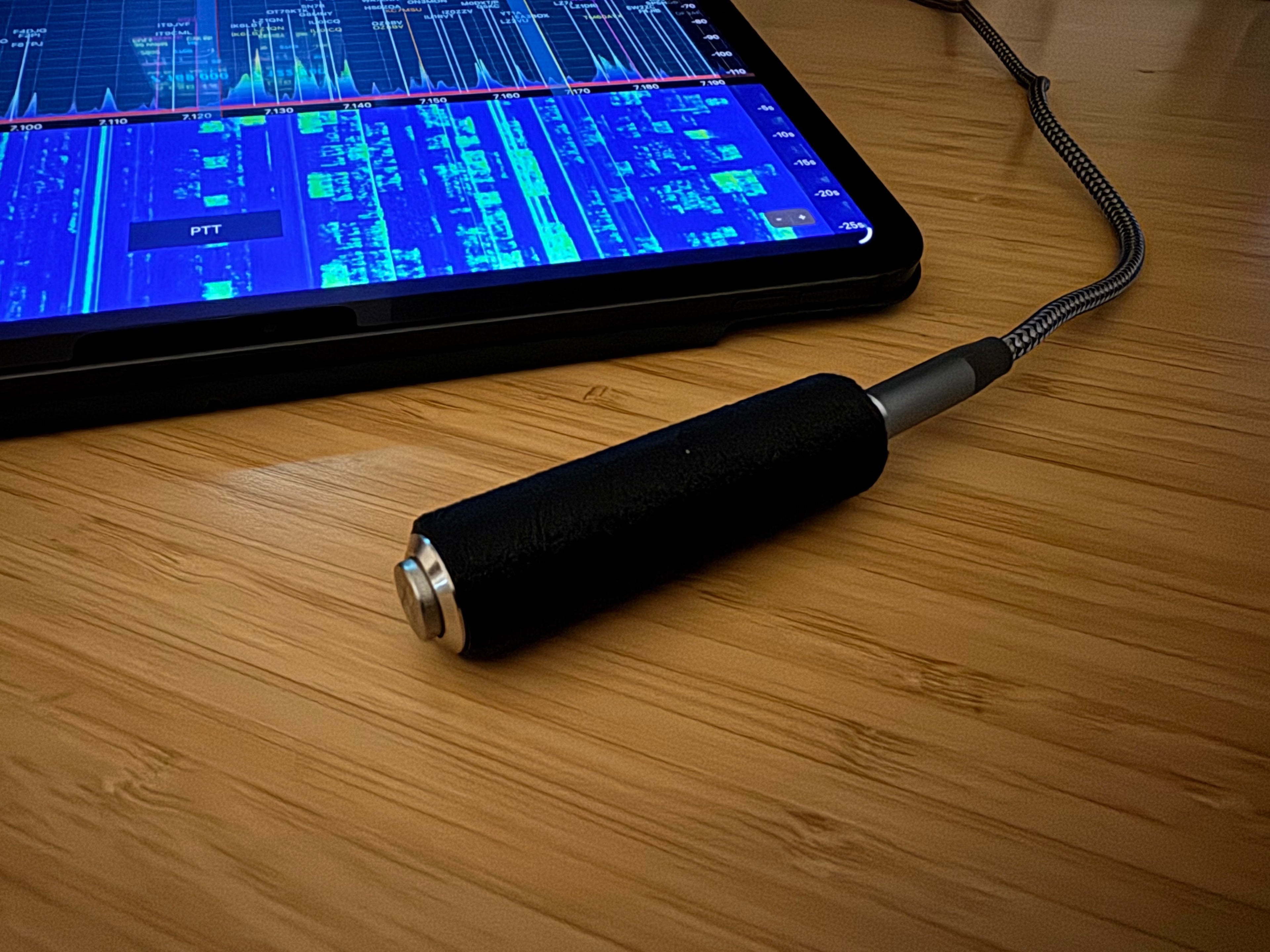

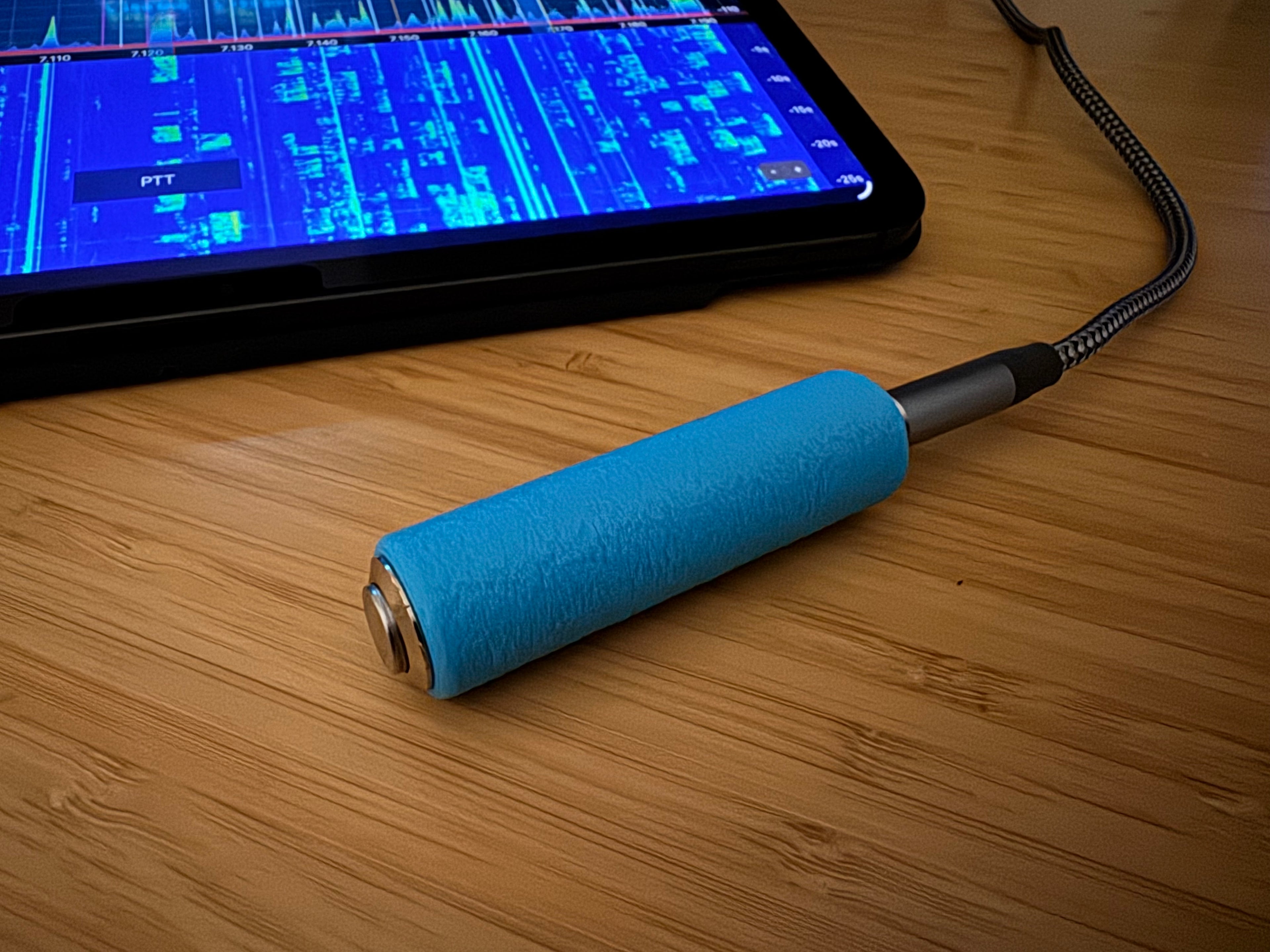

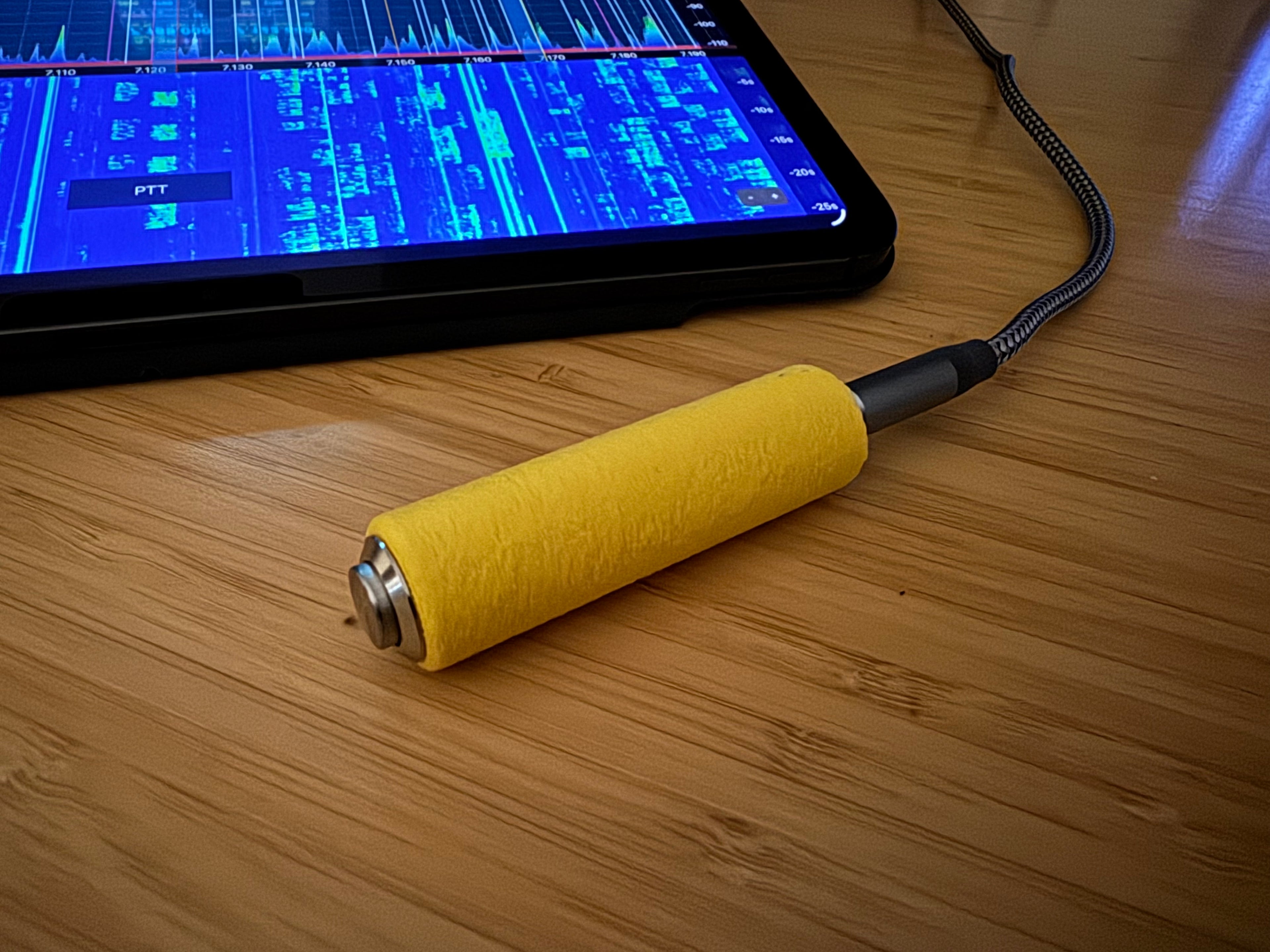

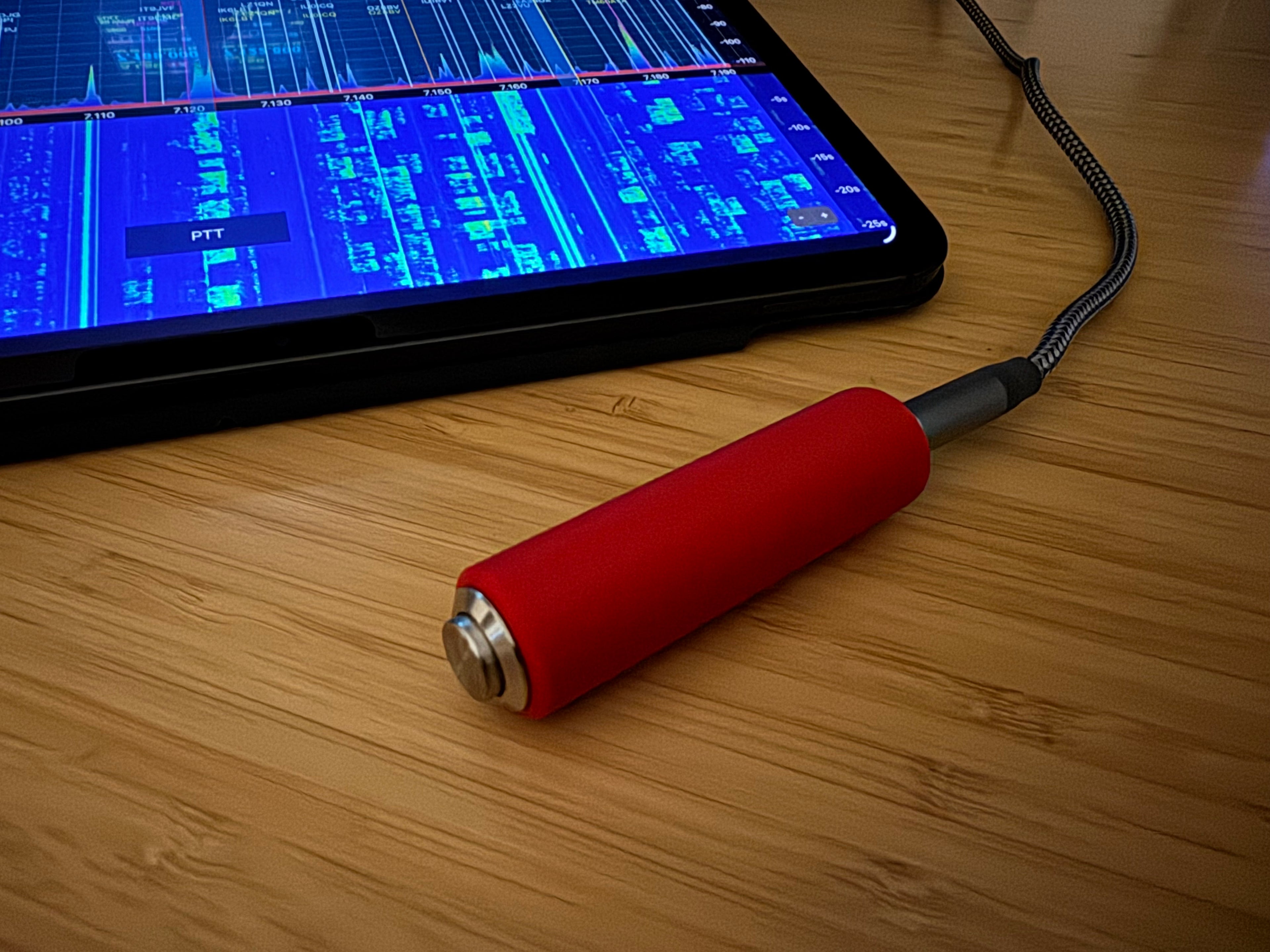

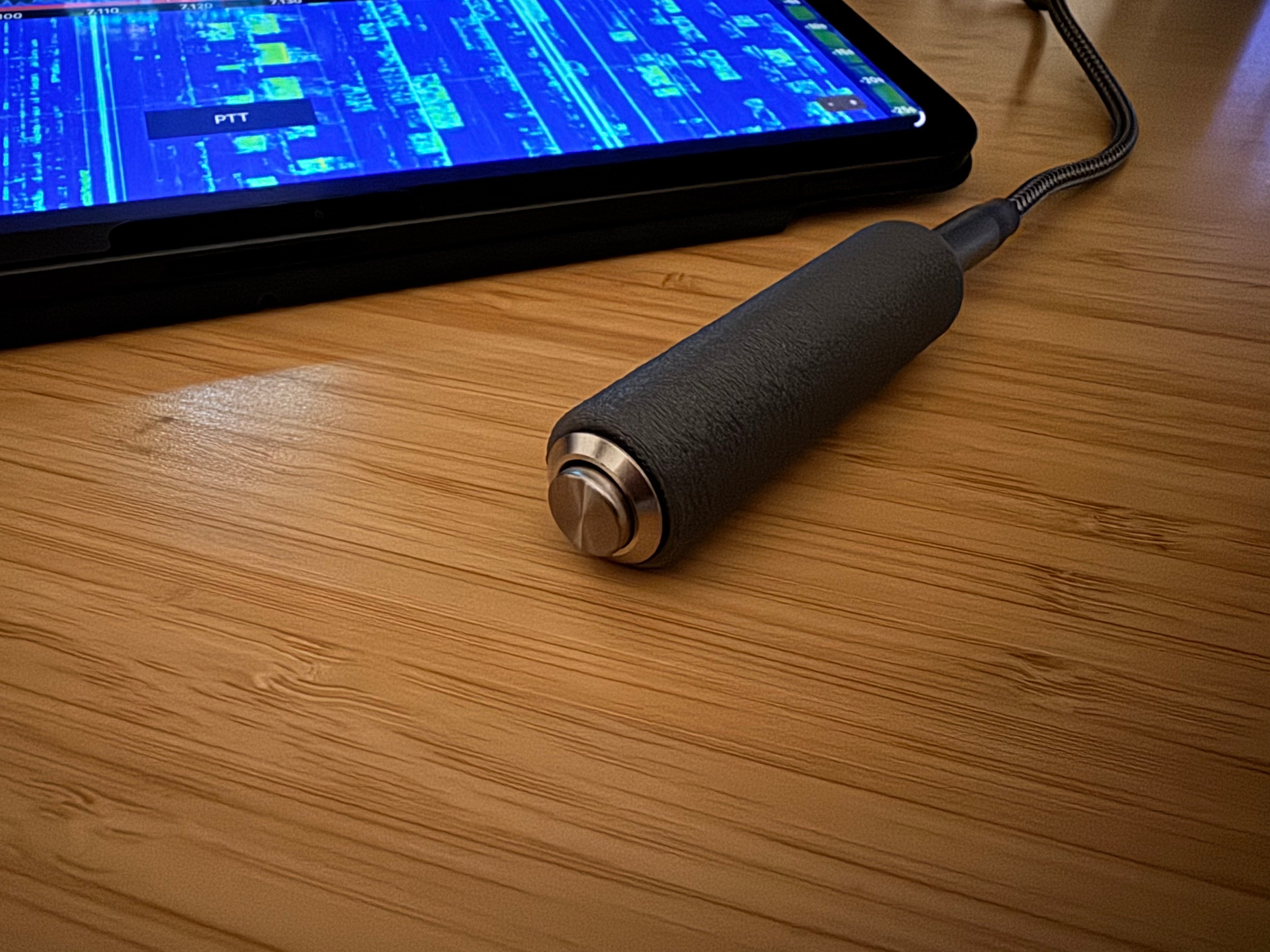

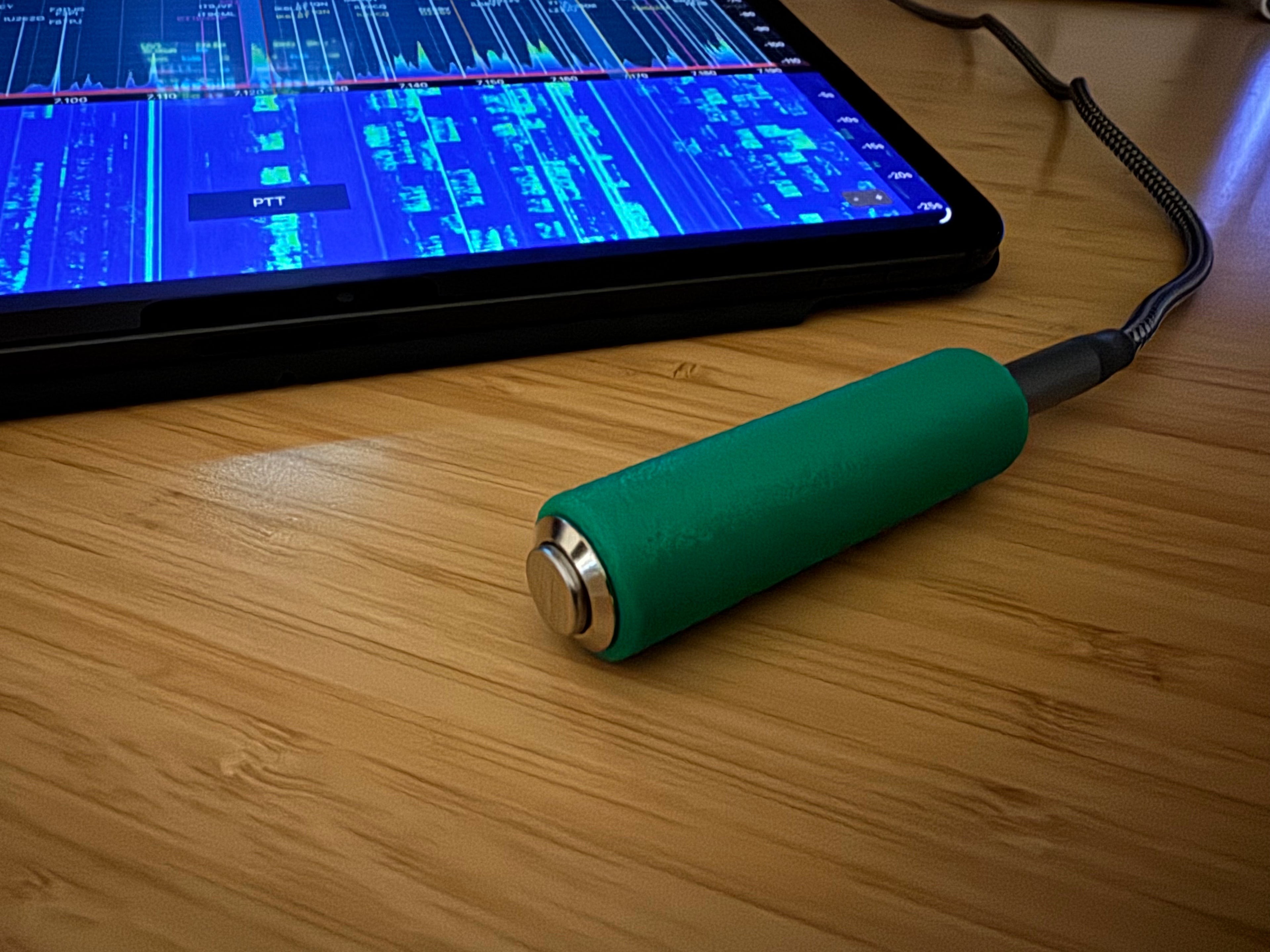

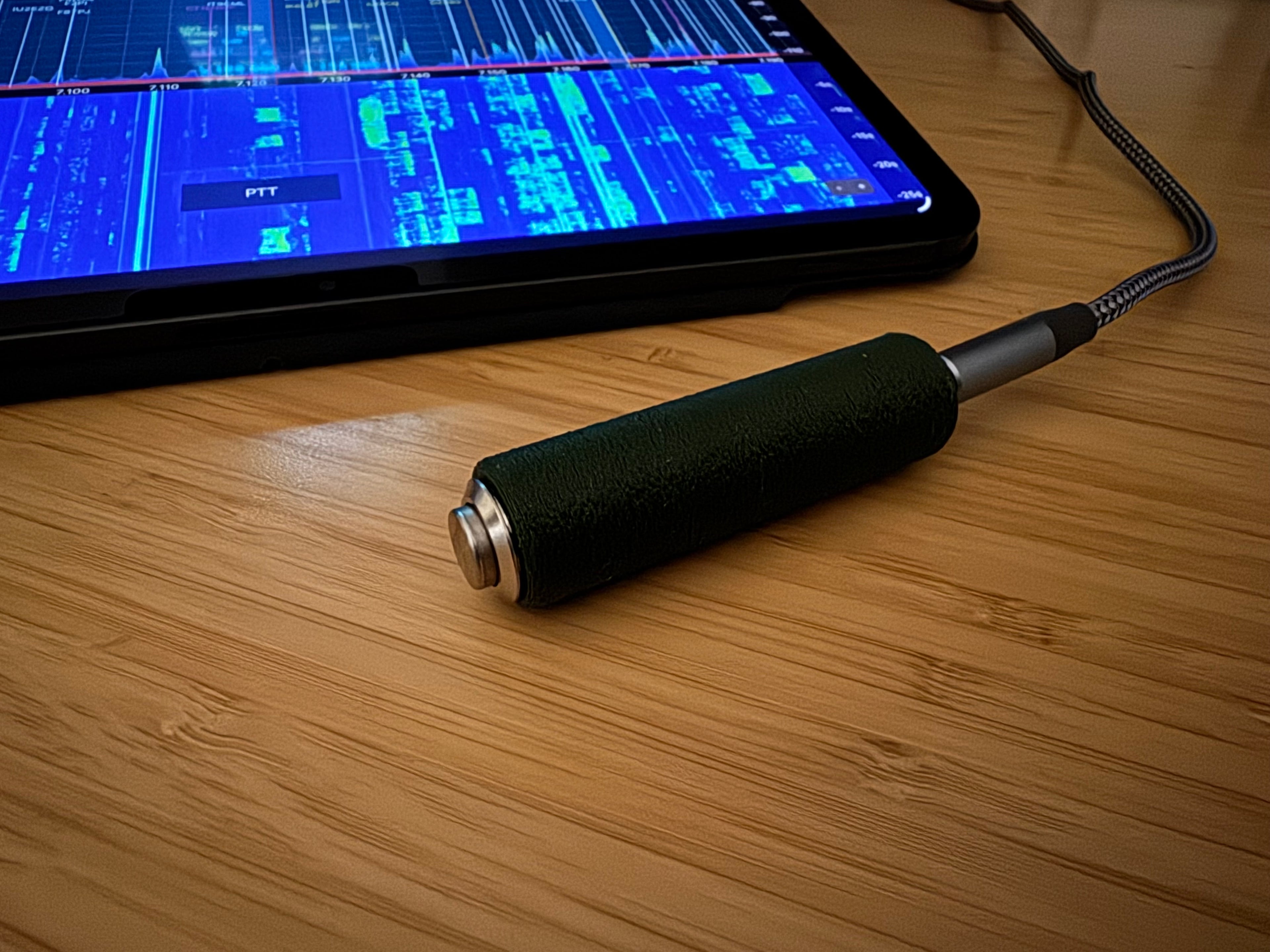

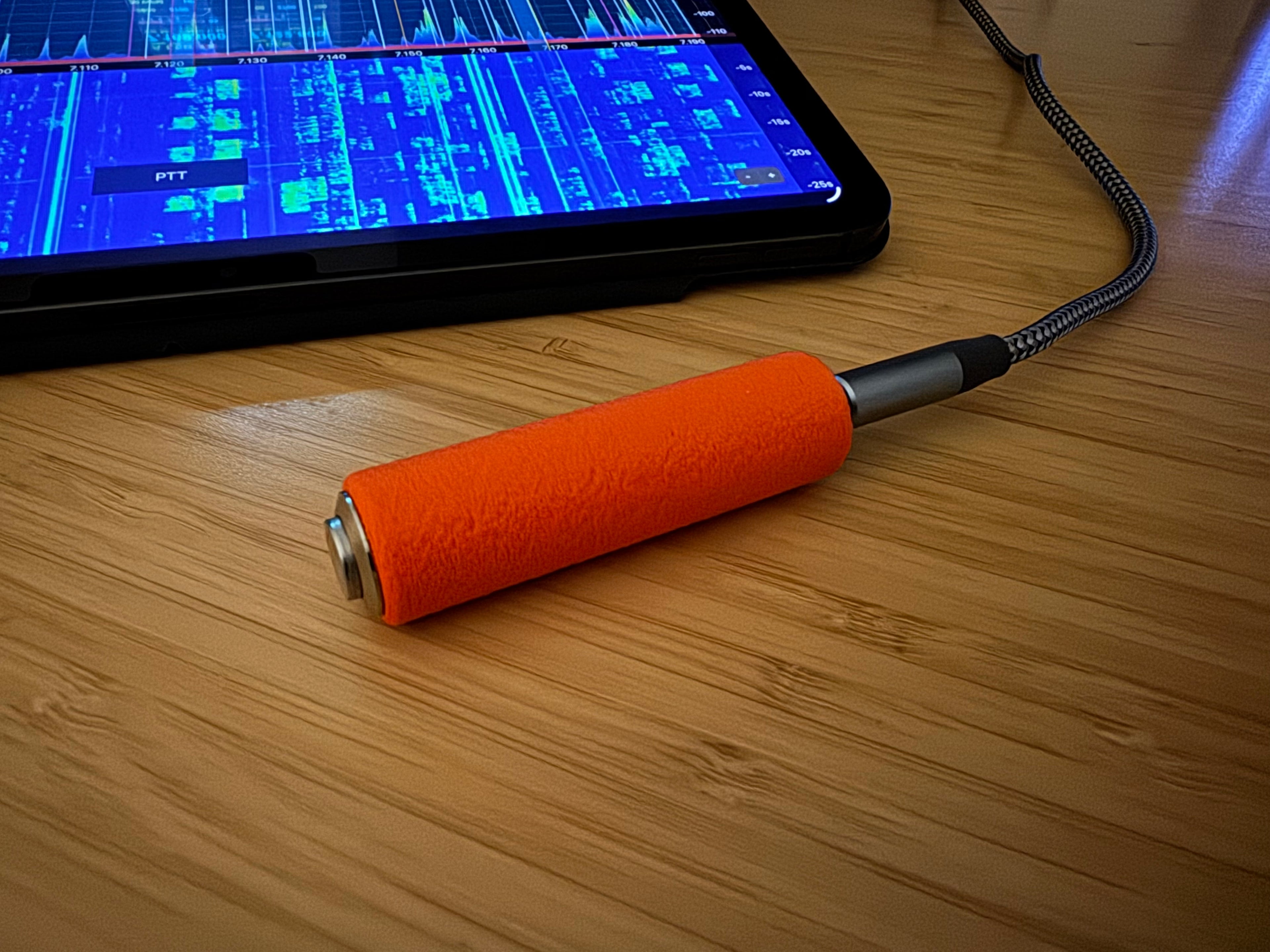

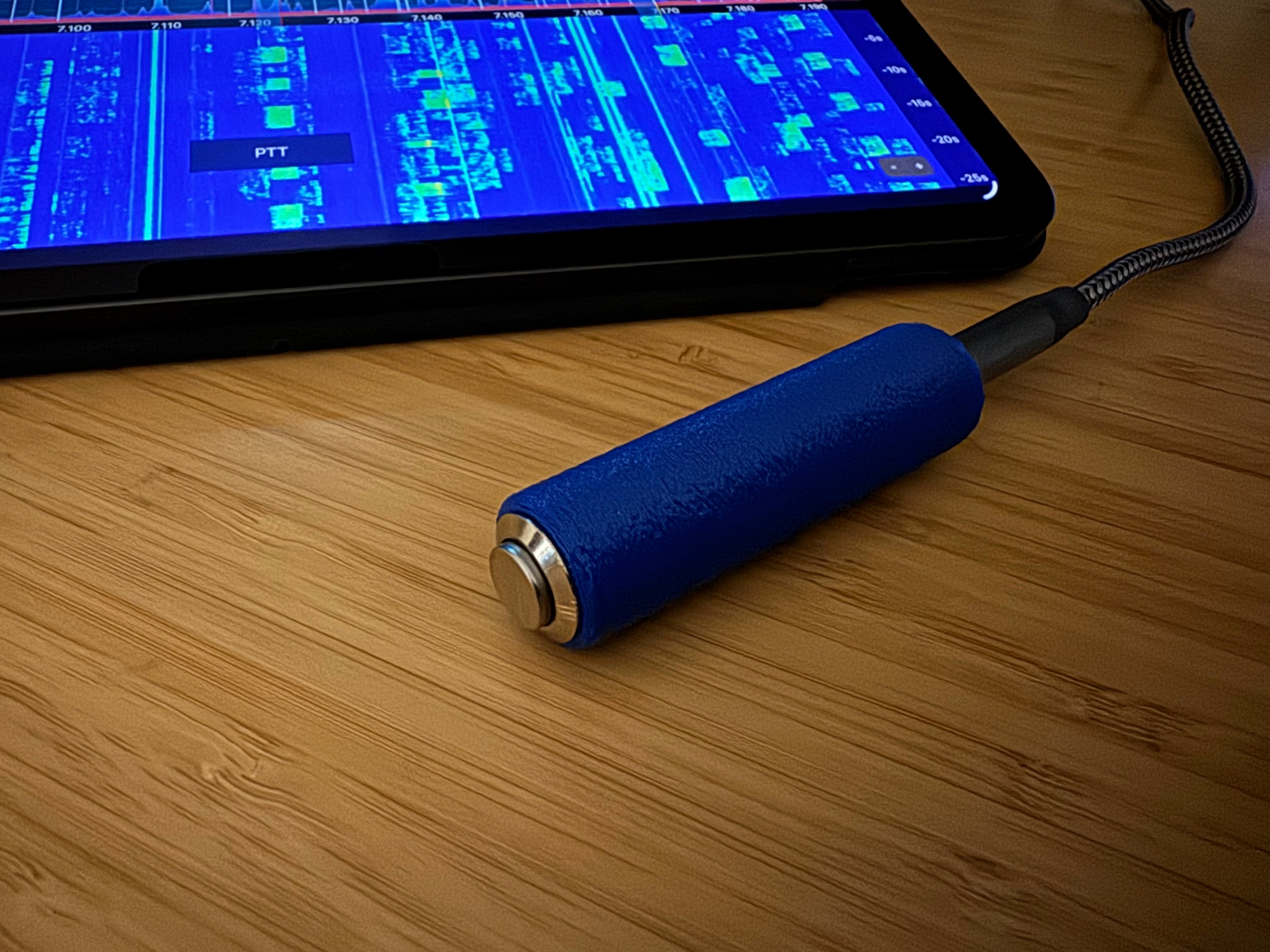

G7UFO Turret PTT Push To Talk Switch for Headsets and Controllers
