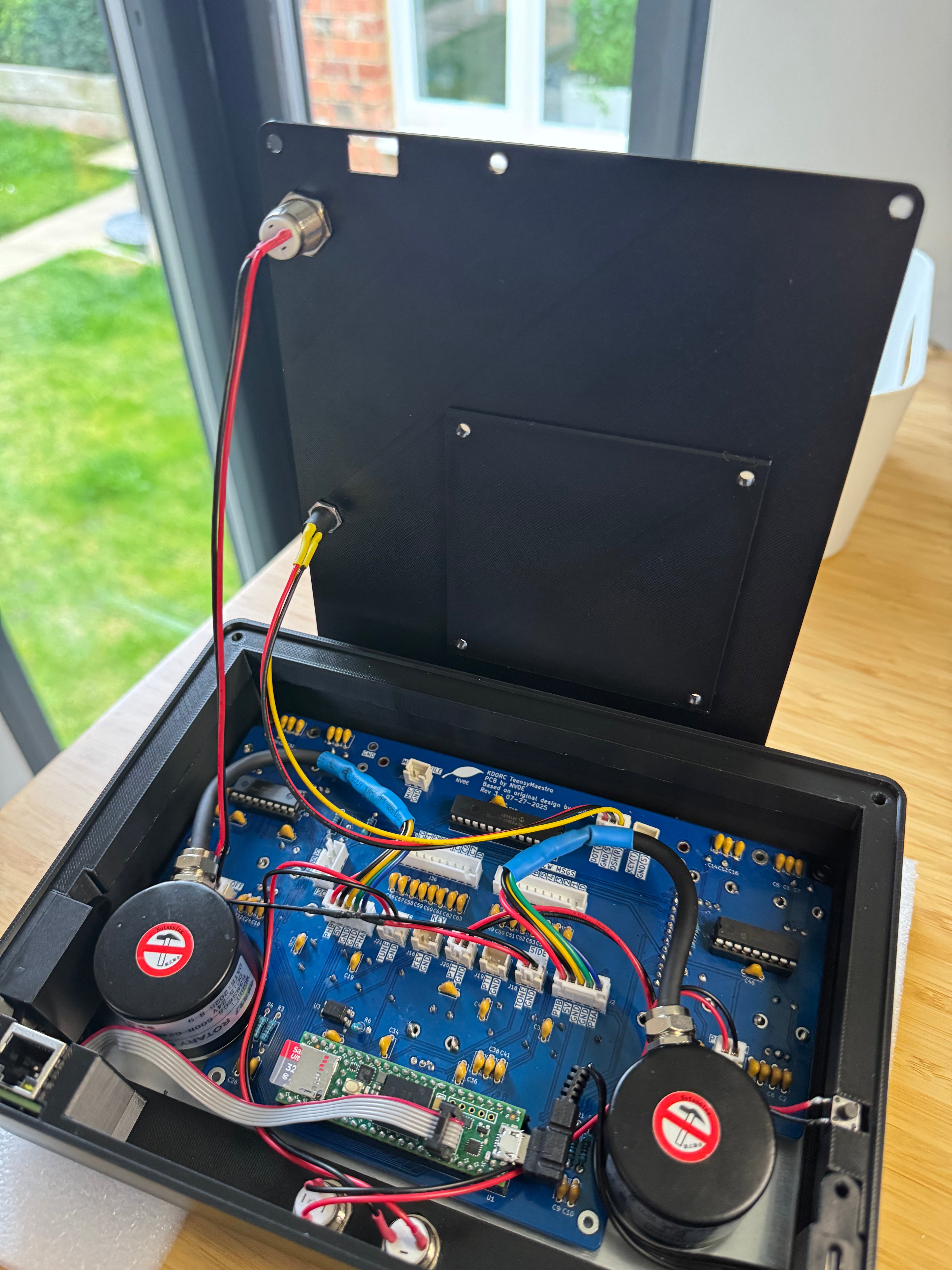

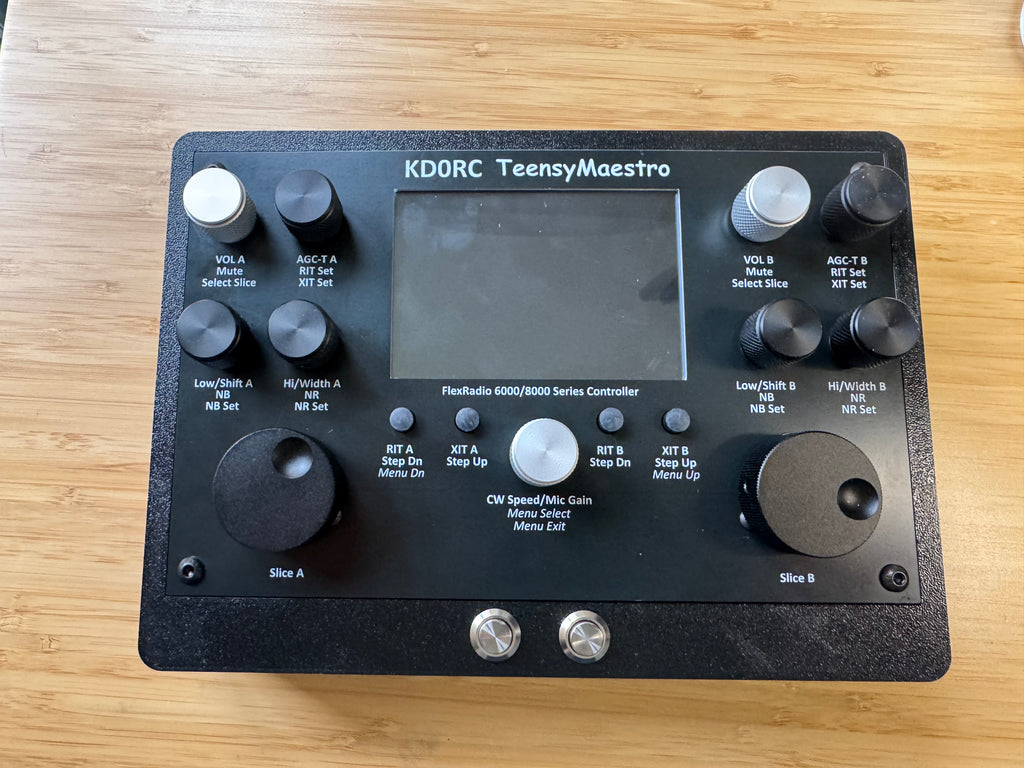

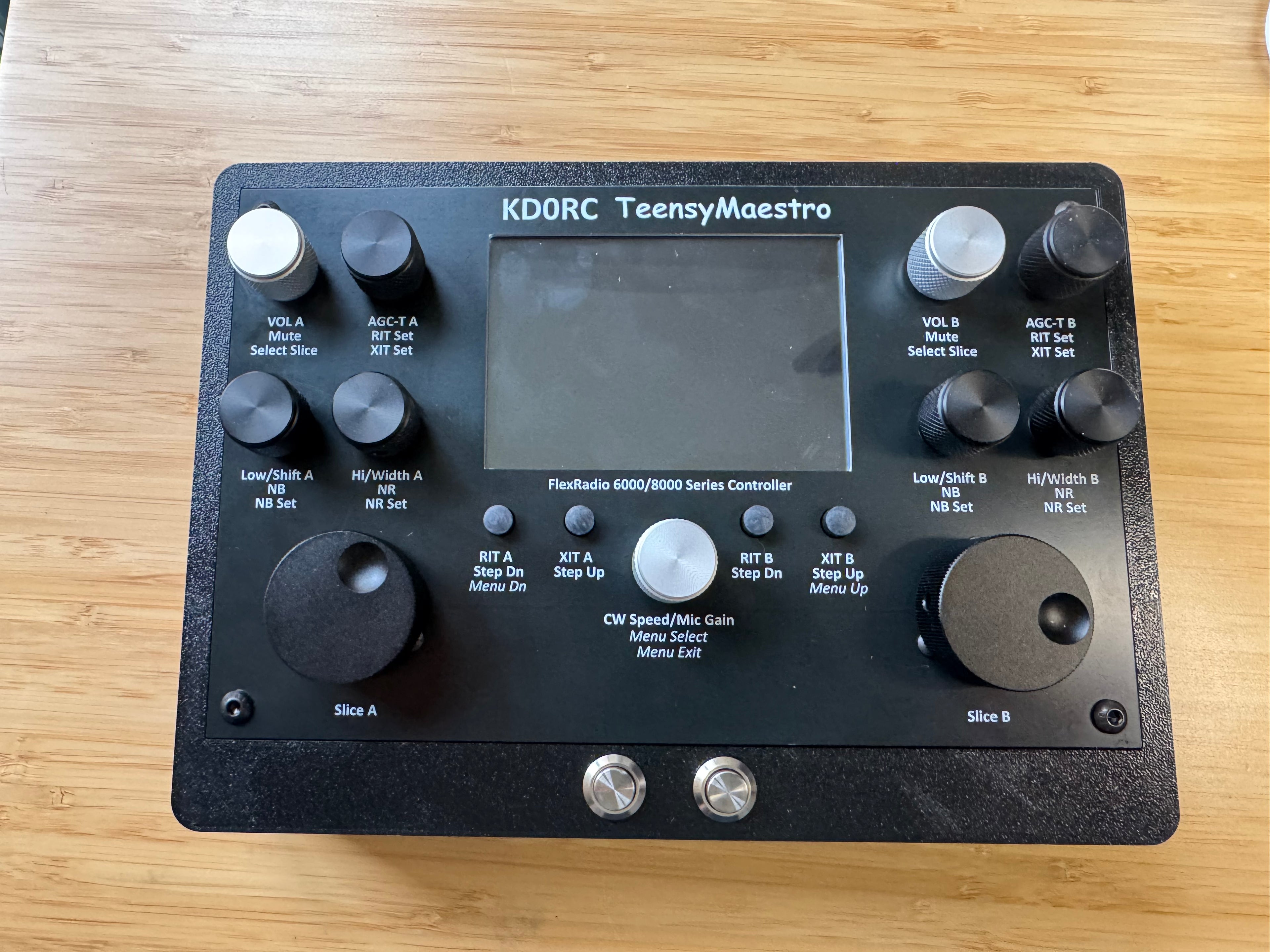

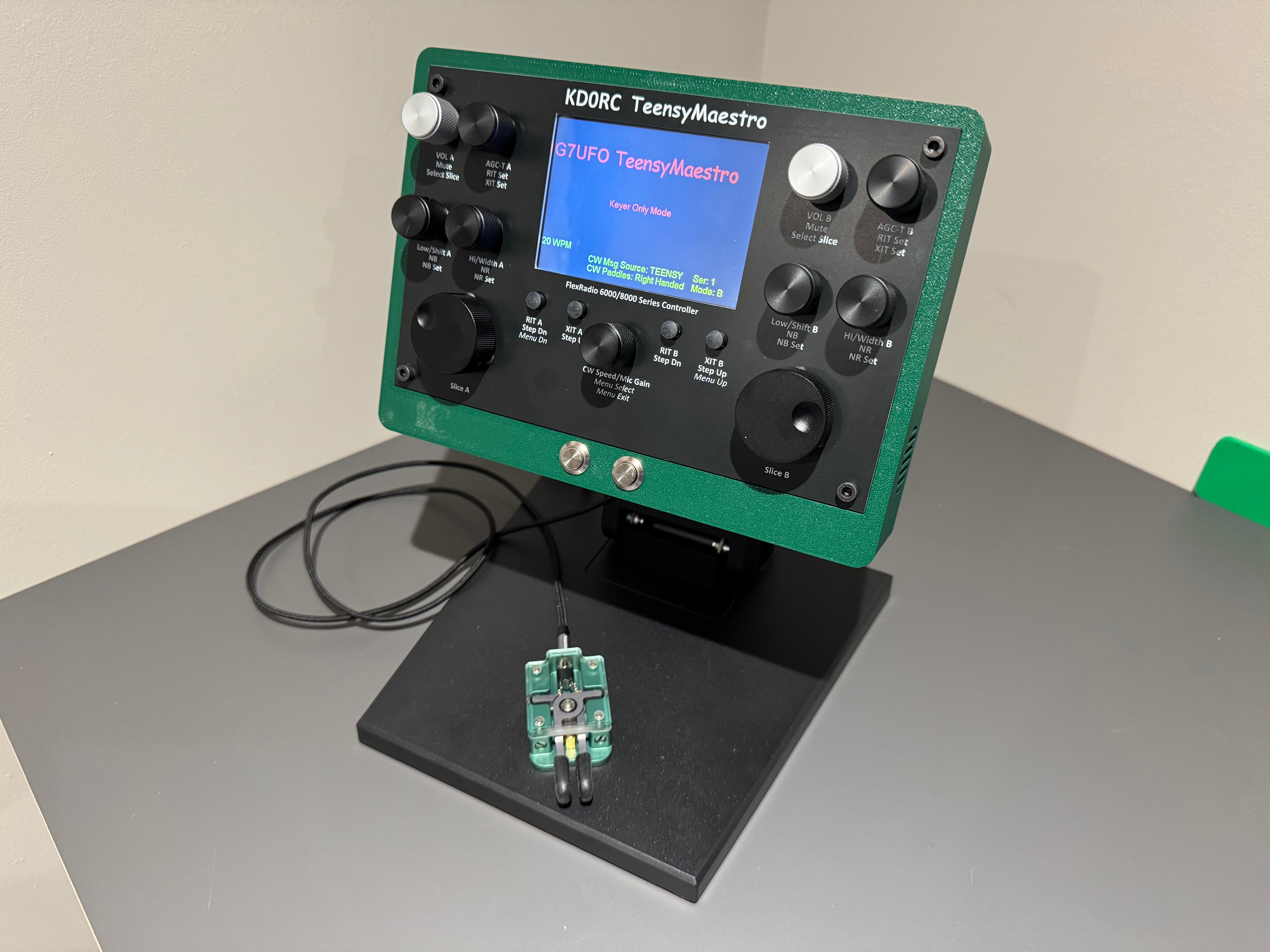

This is a limited-run kit I've put together for the TeensyMaestro v2 PCB board (designed by Simon, NV0E based on the v1 version by Len, KD0RC). All credit goes to them for all the hard work!
All the components you'd need to build a TeensyMaestro are included. The BOM is heavily based on the one laid out by Simon

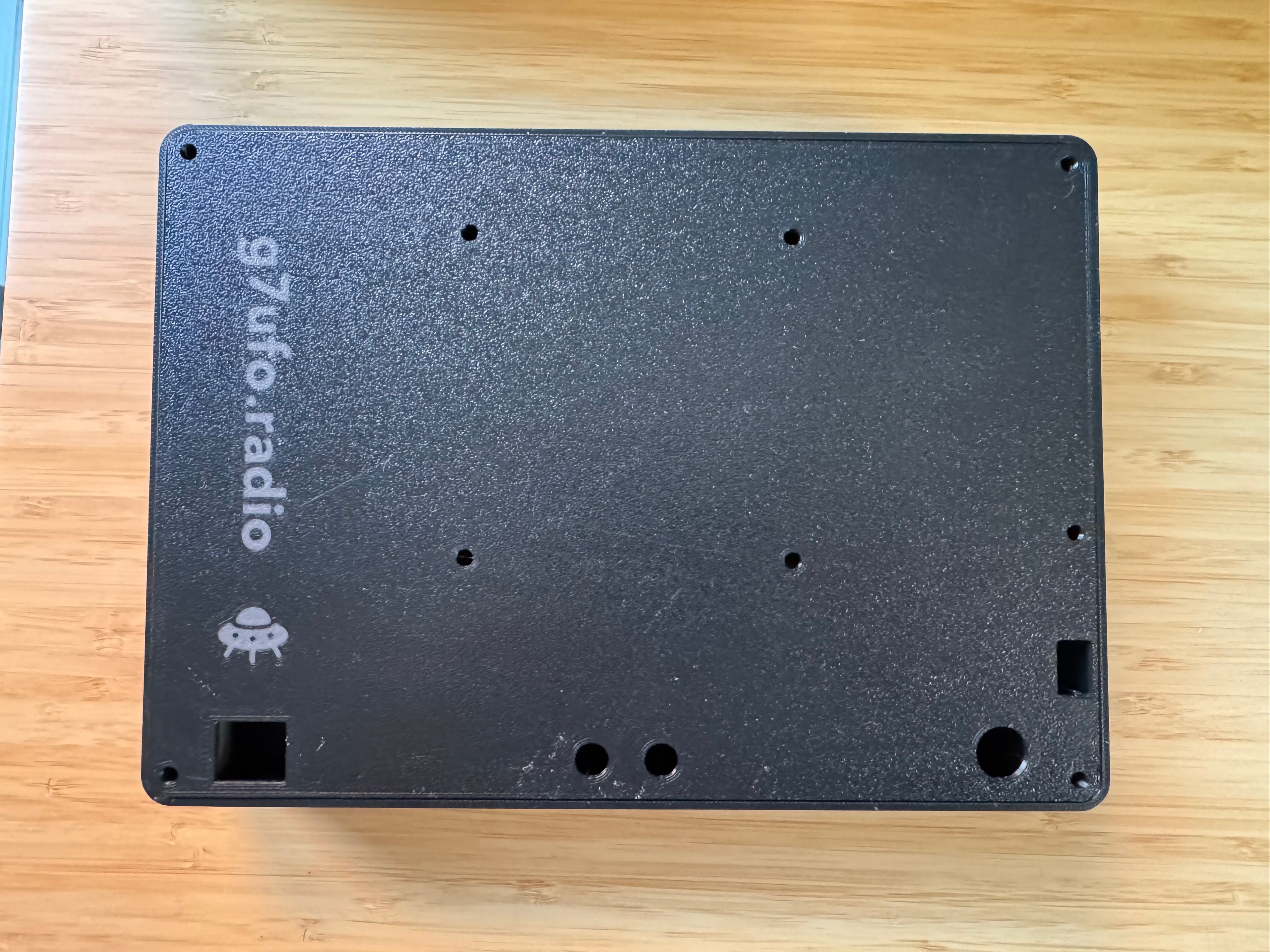

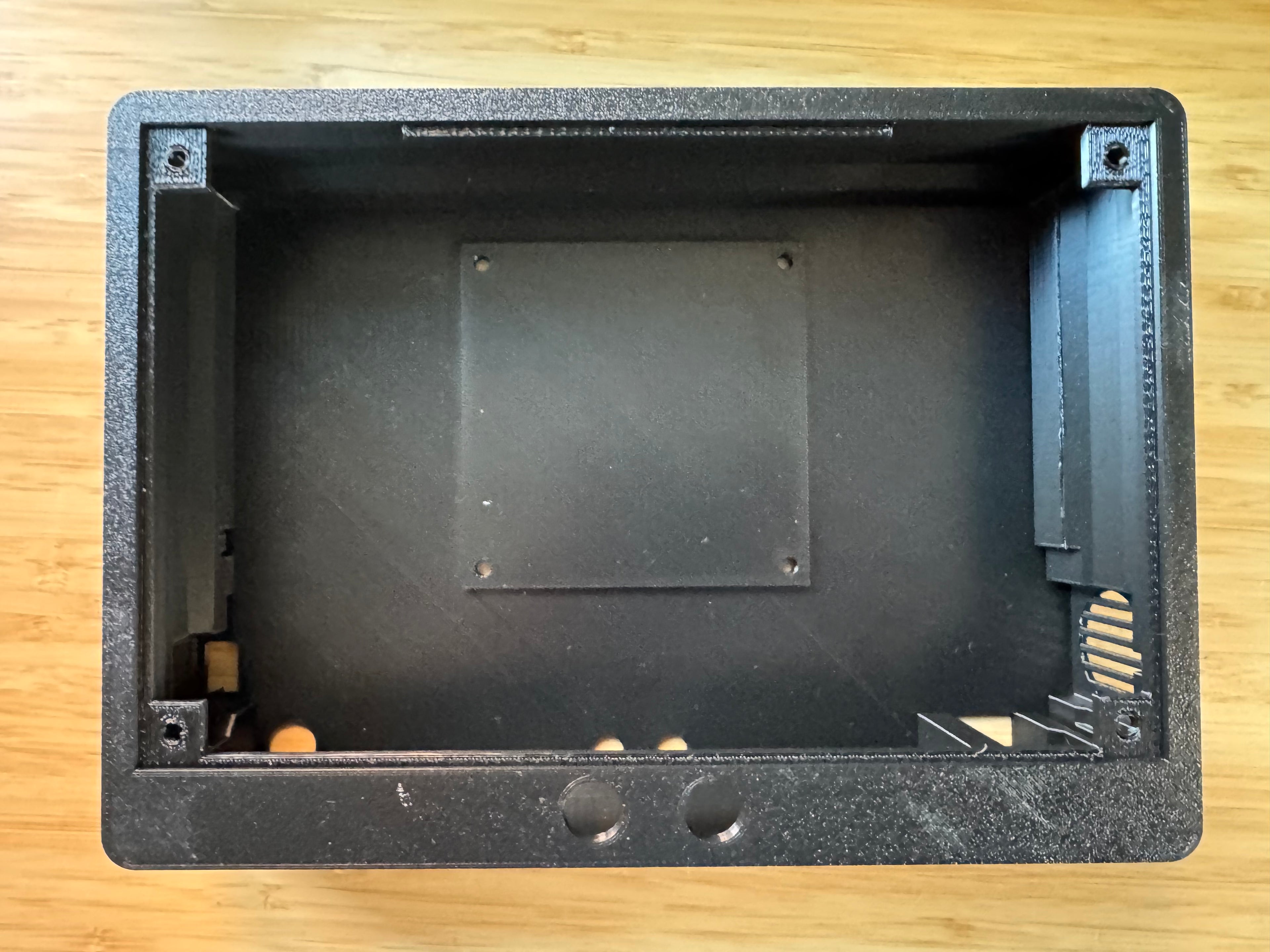

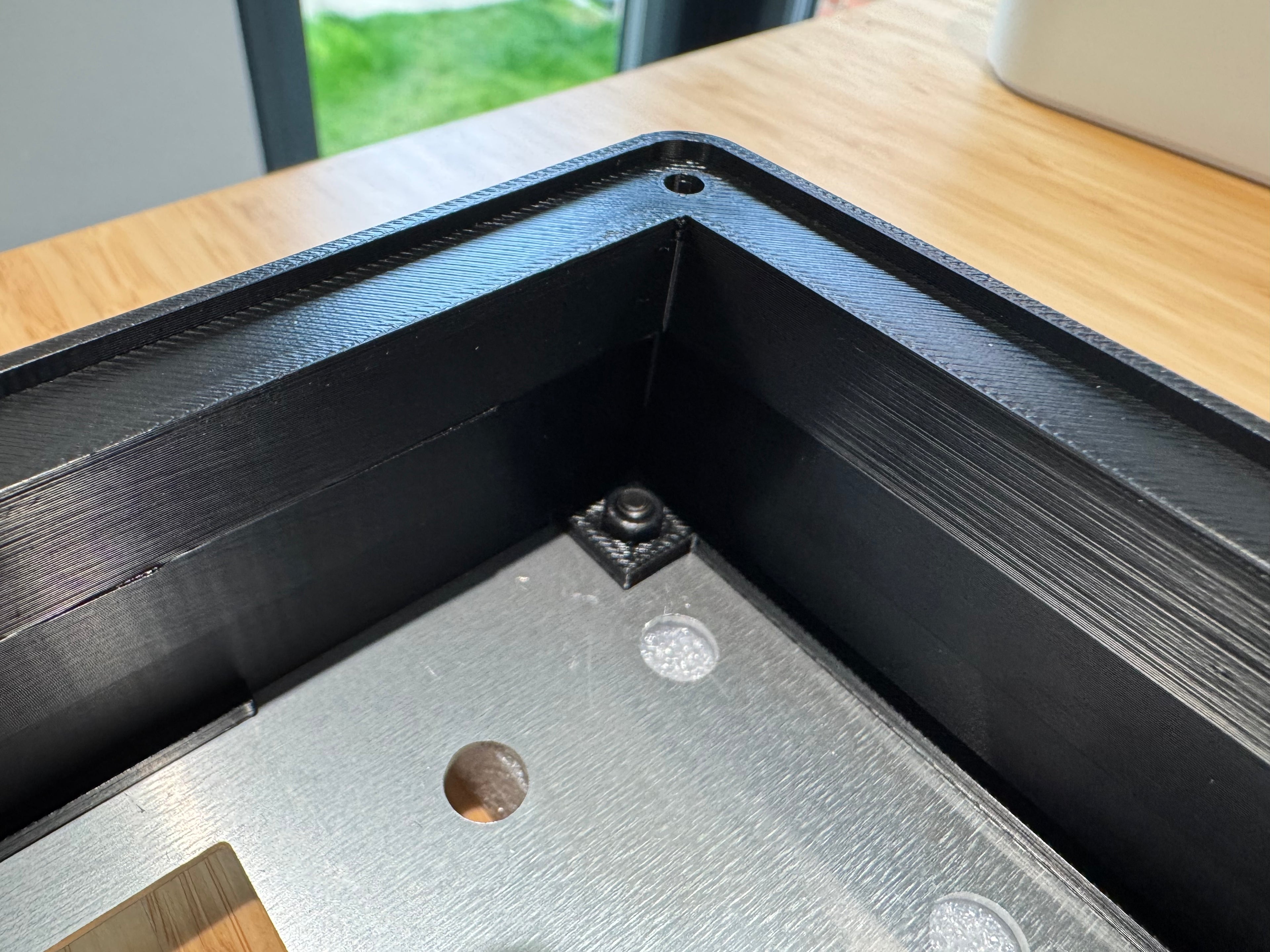

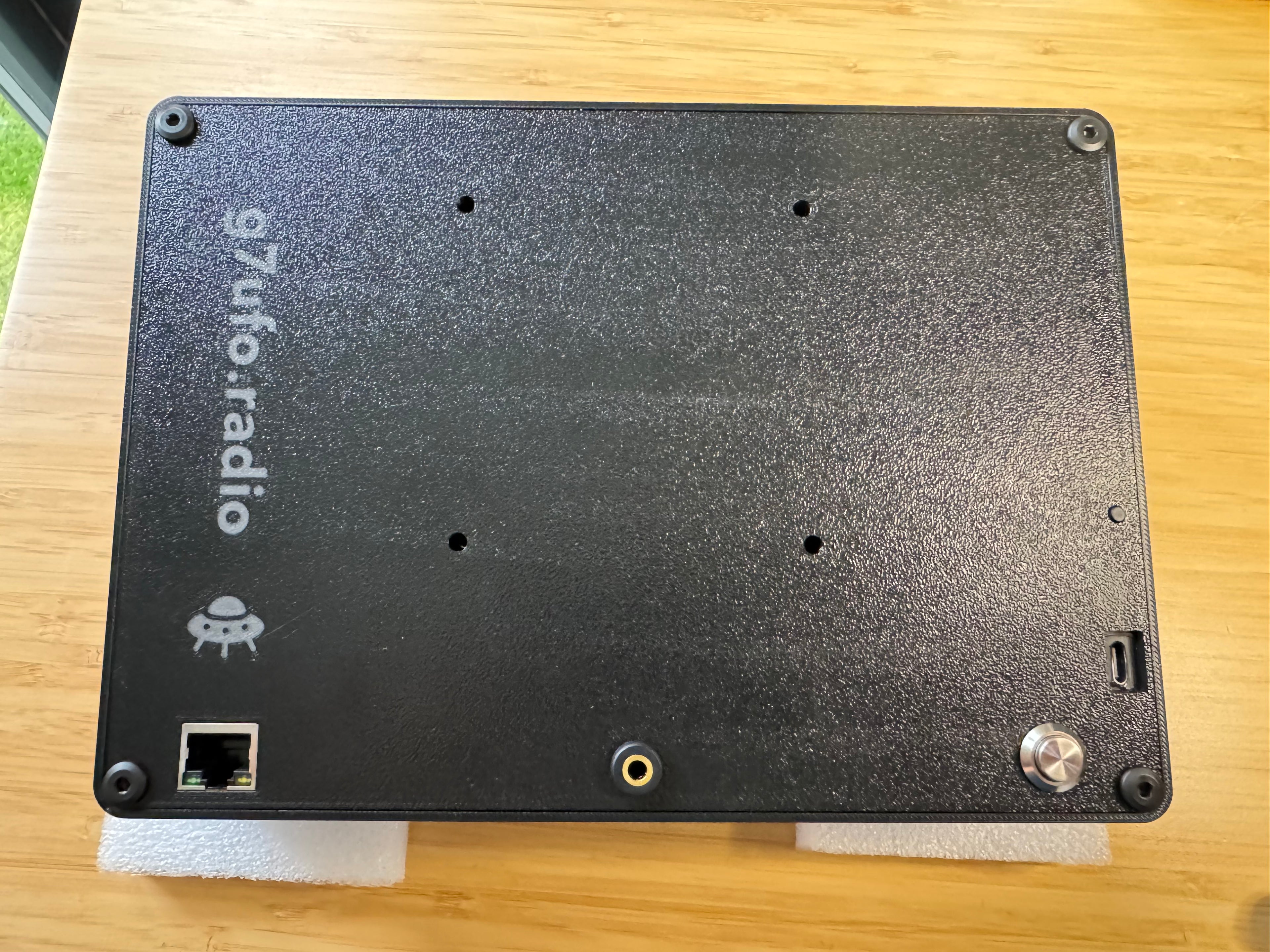

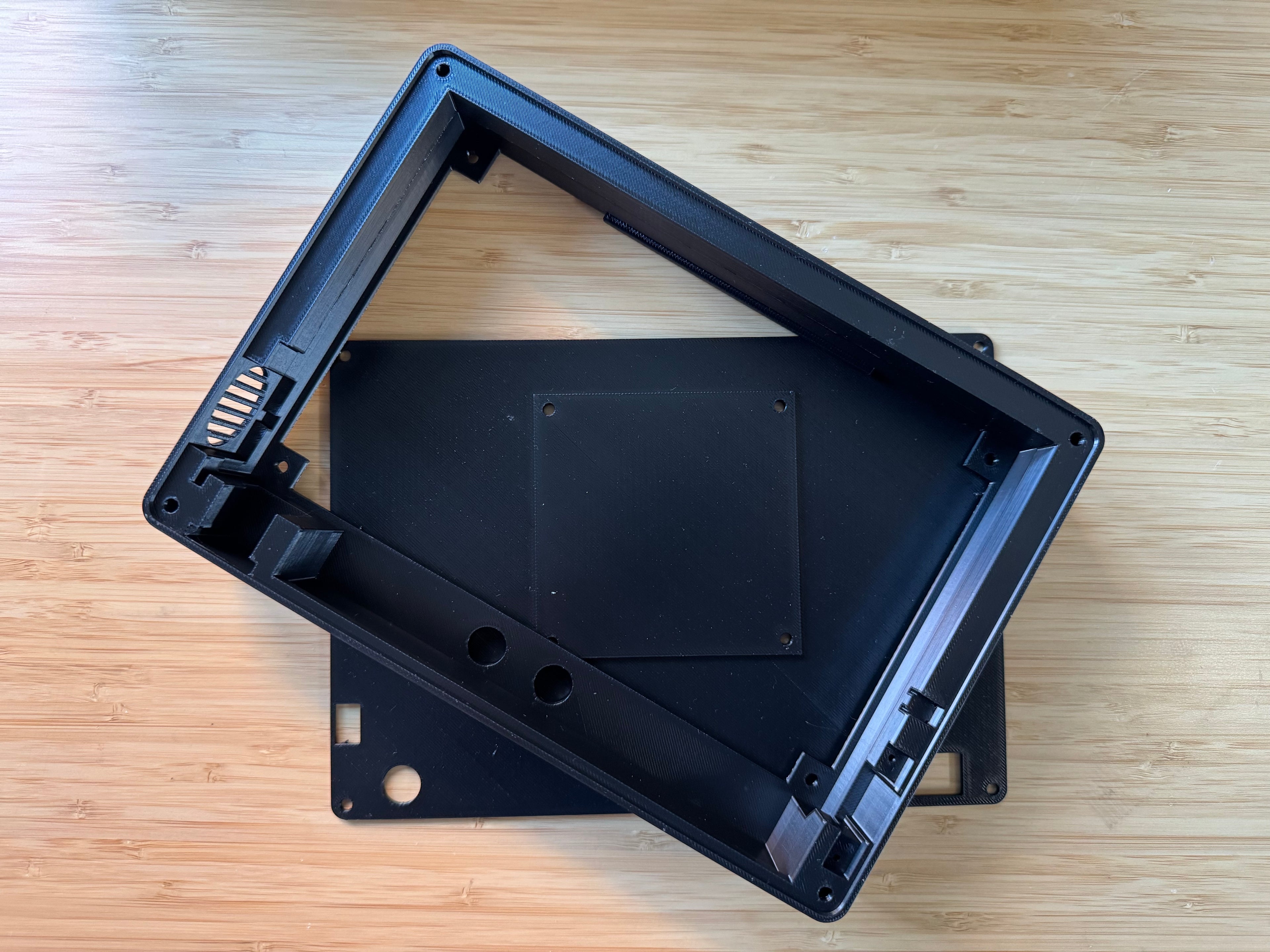

- I've replaced the original enclosure with my own designed and 3D printed version. The version included in this kit will default to the colour grey although if you'd like a different colour, please message me (examples of colours available can be found in my Turret Mic page).
- By default the base kit includes three buttons (eg for power, PTT and tune) and a single 3.5mm socket for a paddle/key/external PTT. Additional buttons and sockets can be included. The supplied custom case will be customised to accommodate these.

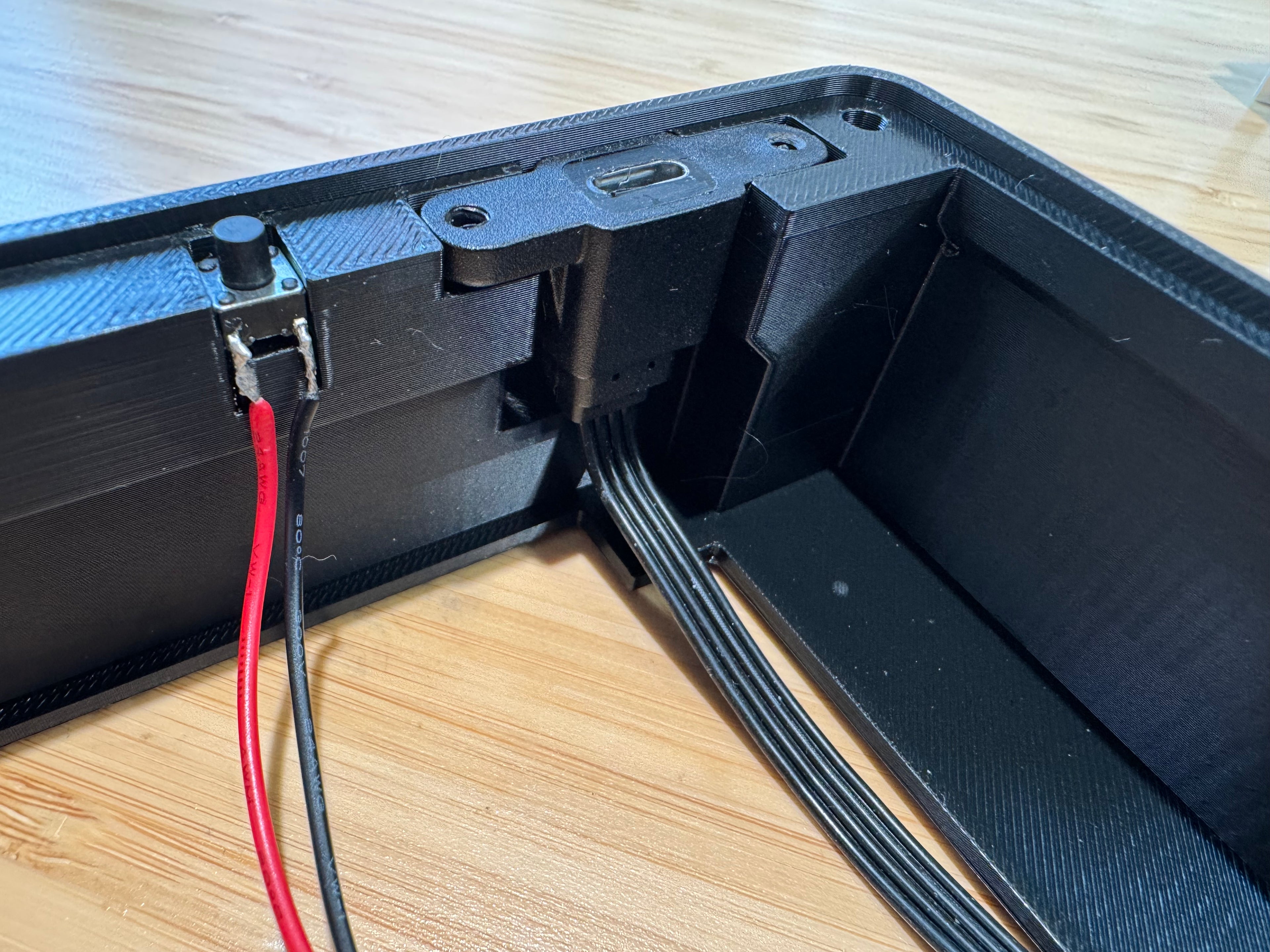

- Some instructions on mounting in the case can be found here.
Each kit and case is produced to order so expect a slight delay (days, not weeks) before dispatch.
Any questions, please drop me a message.
Bill of Materials
| Item | Quantity |
| TeensyMaestro Case (grey but other colours can be requested) | 1 |
| M4 screws (for case) | 8 |
| M2.5x6mm spacer | 6 |
| M2.5 nuts | 12 |

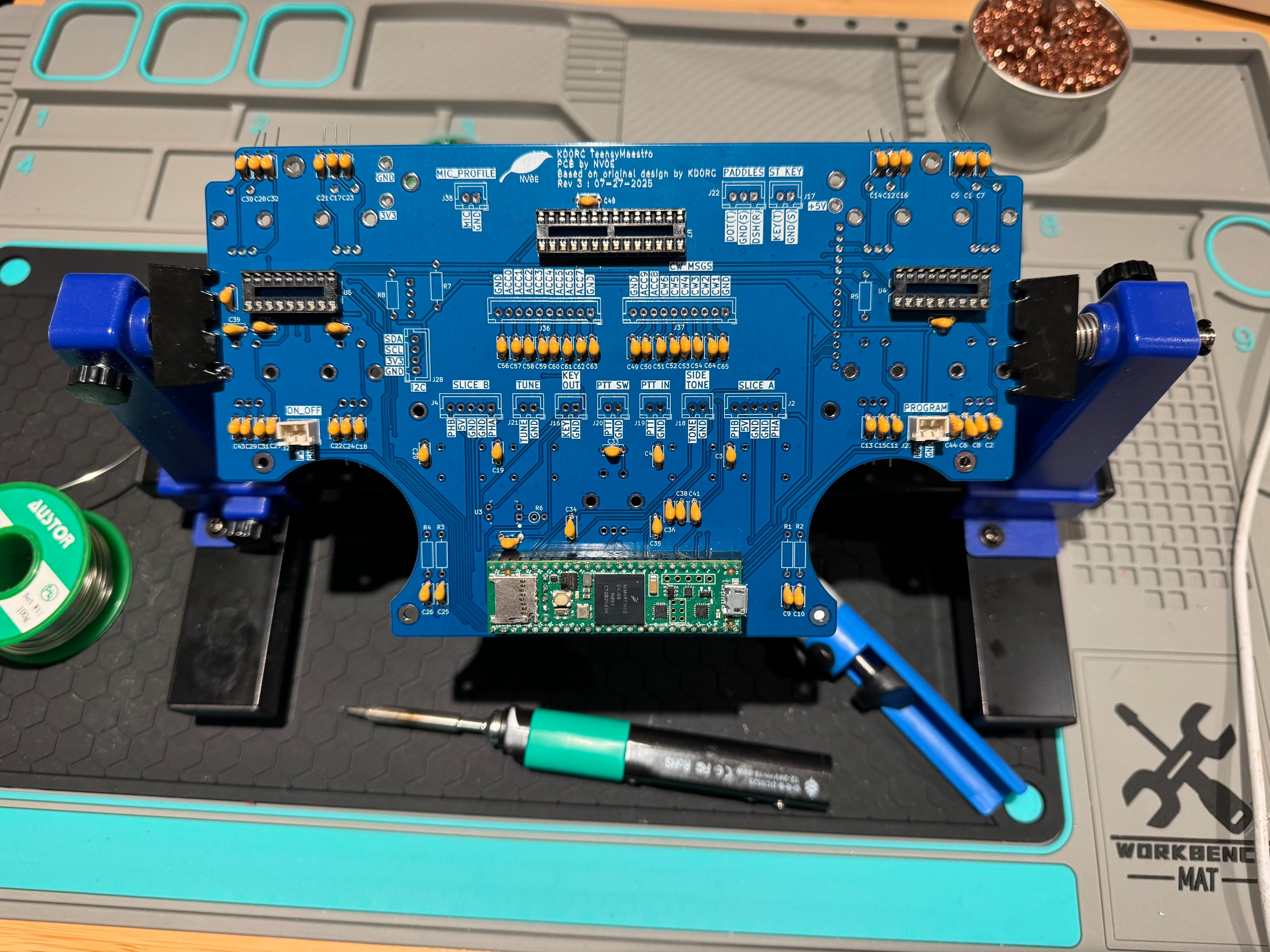

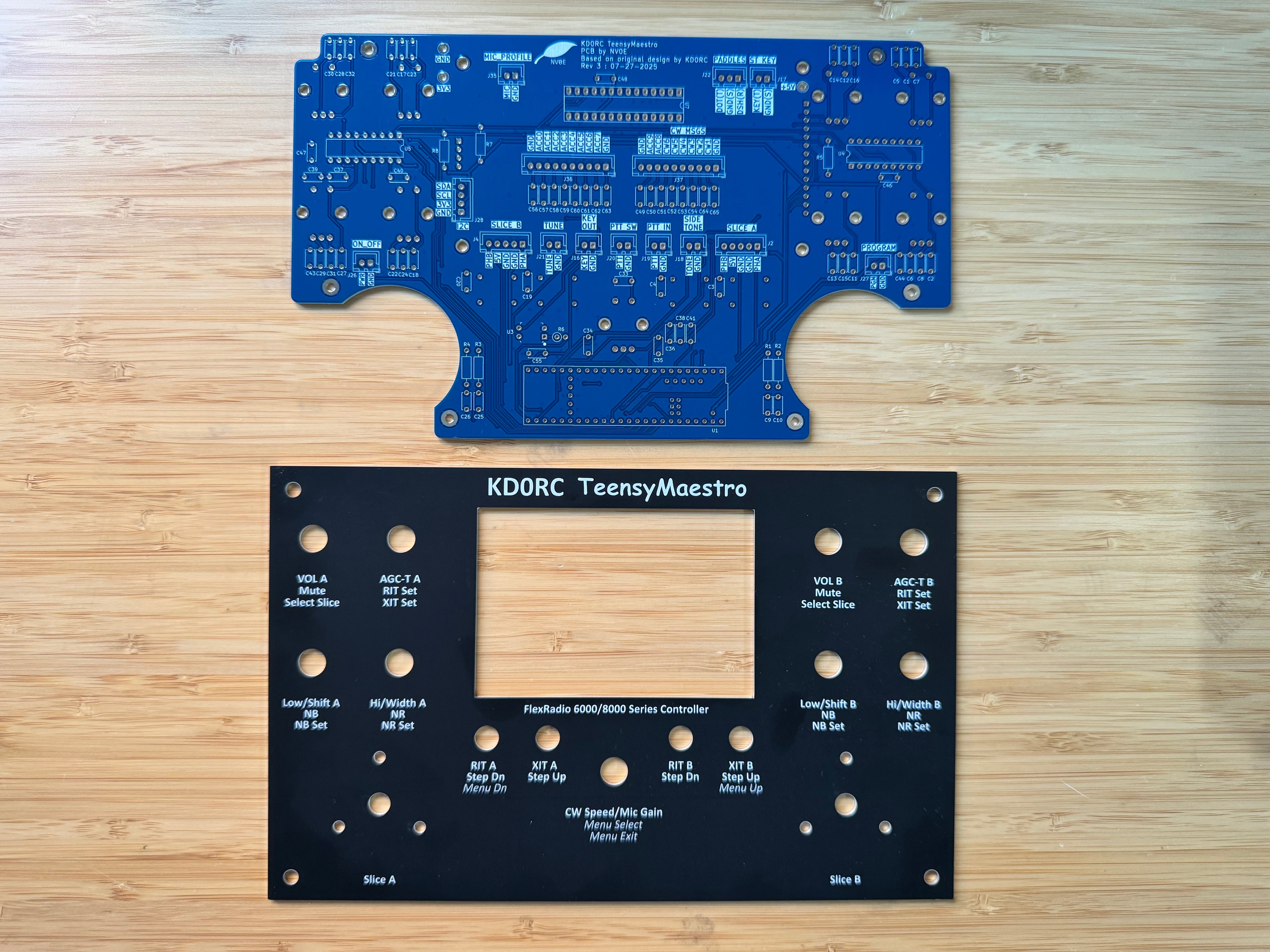

| TeensyMaestro PCB | 1 |
| TeensyMaestro Front Panel | 1 |

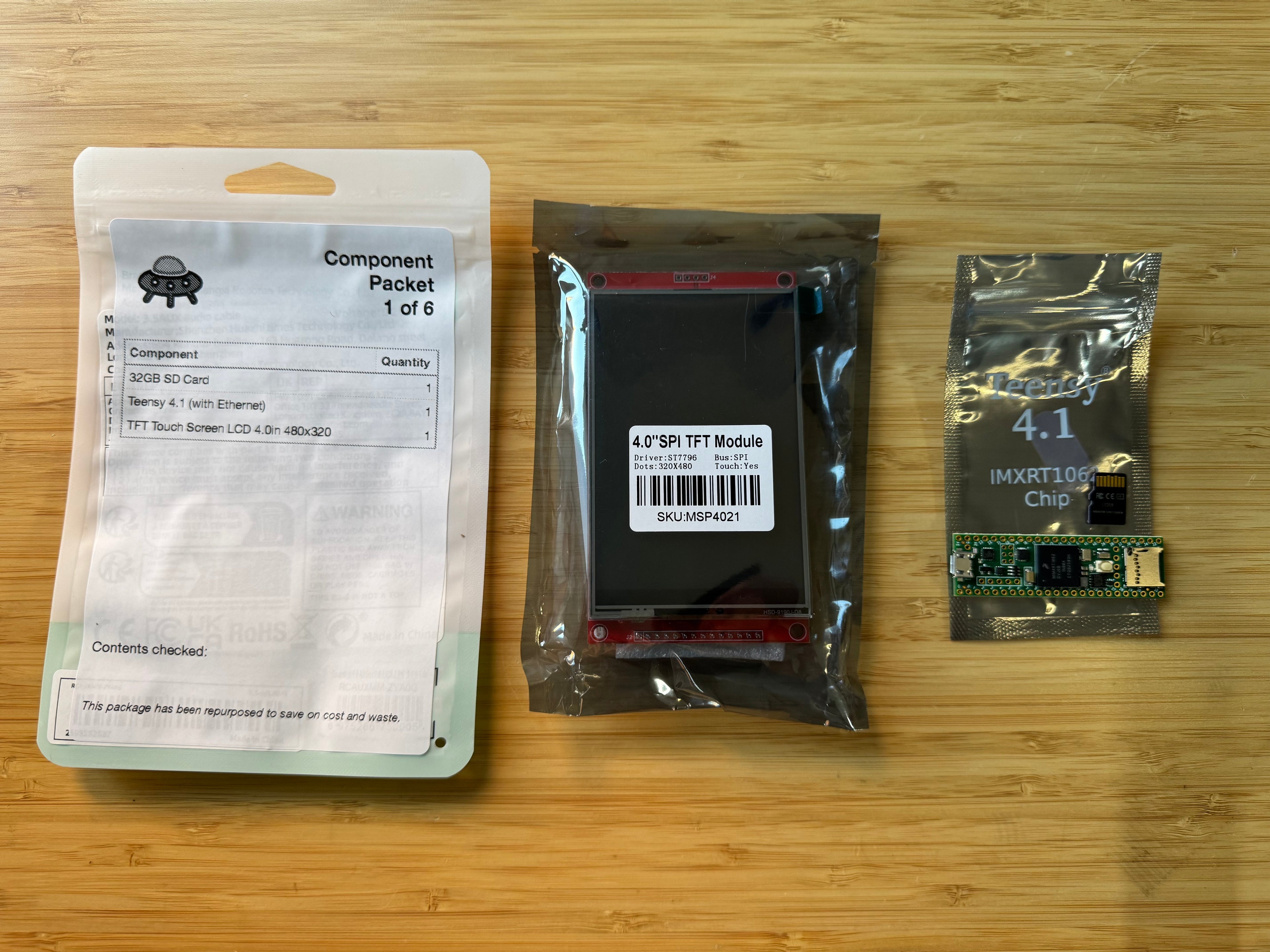

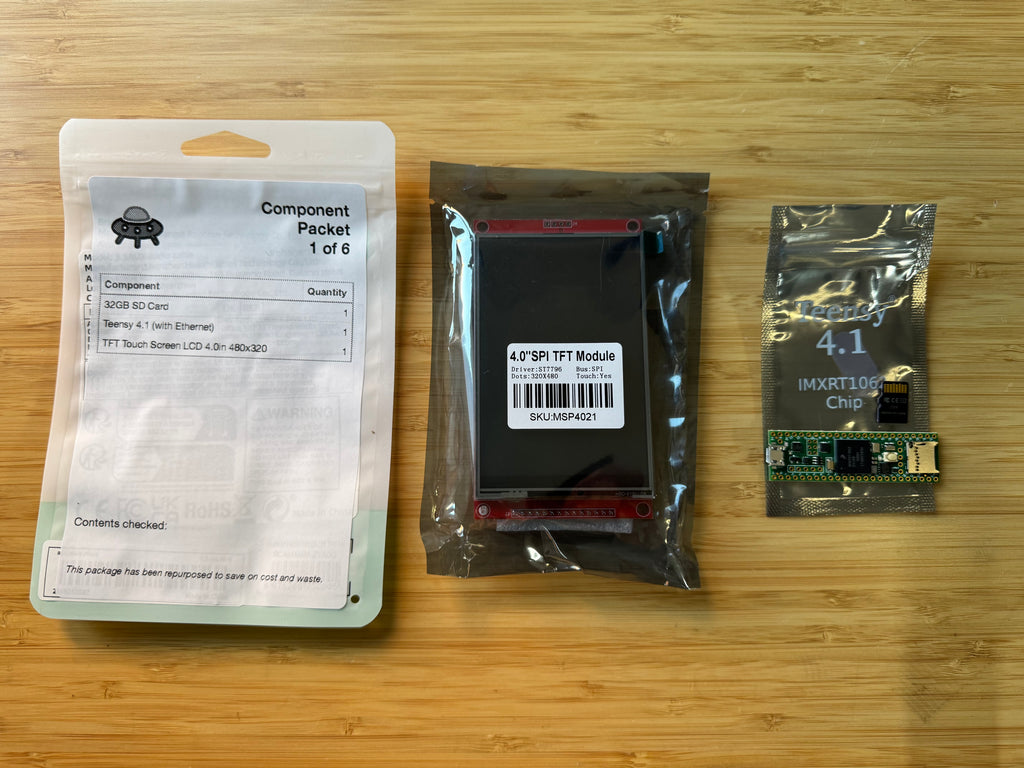

| Teensy 4.1 (with Ethernet) | 1 |

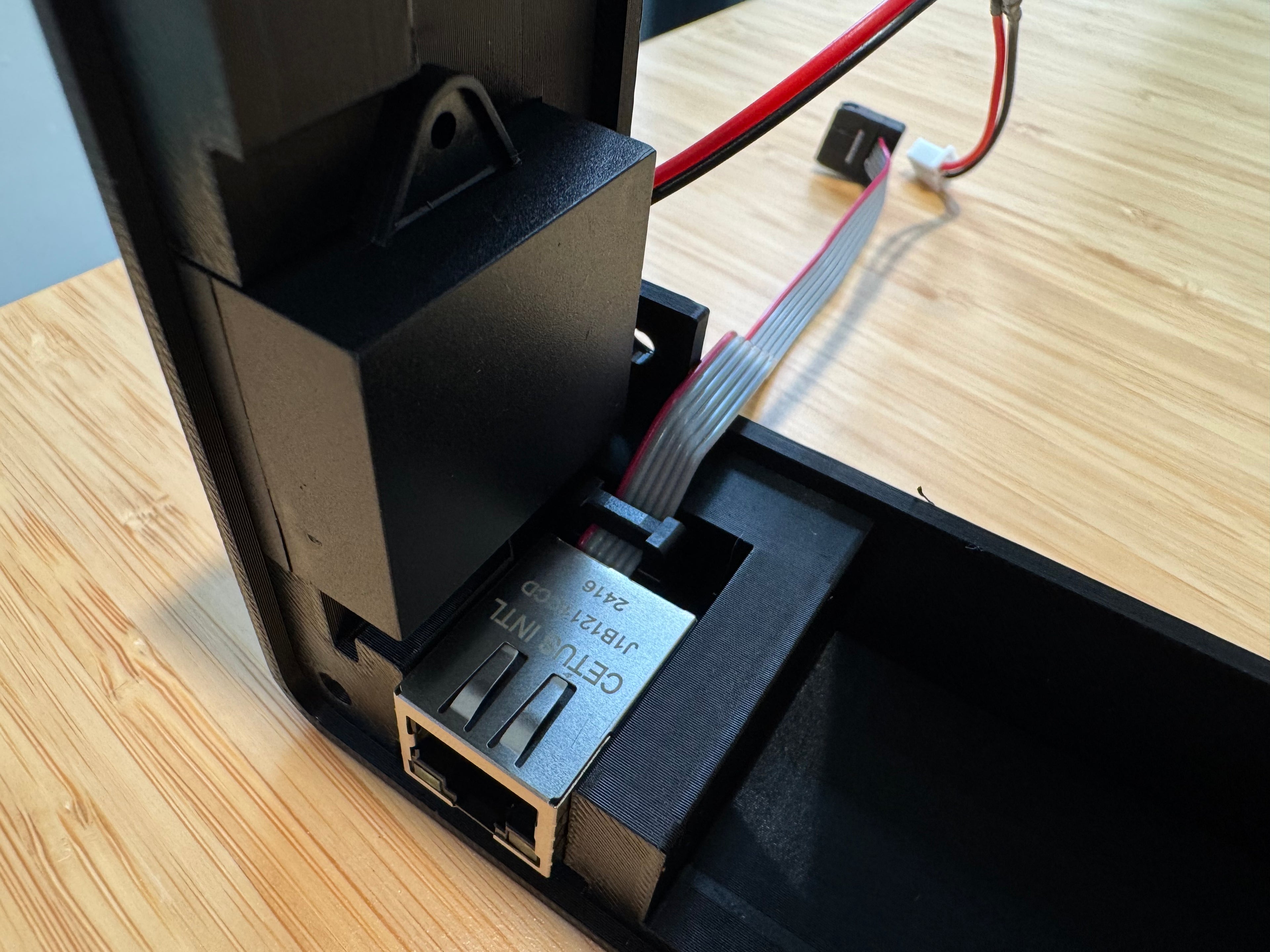

| Teensy 4.1 Ethernet Kit | 1 |
| 4.0in 480x320 TFT Touch Screen LCD | 1 |

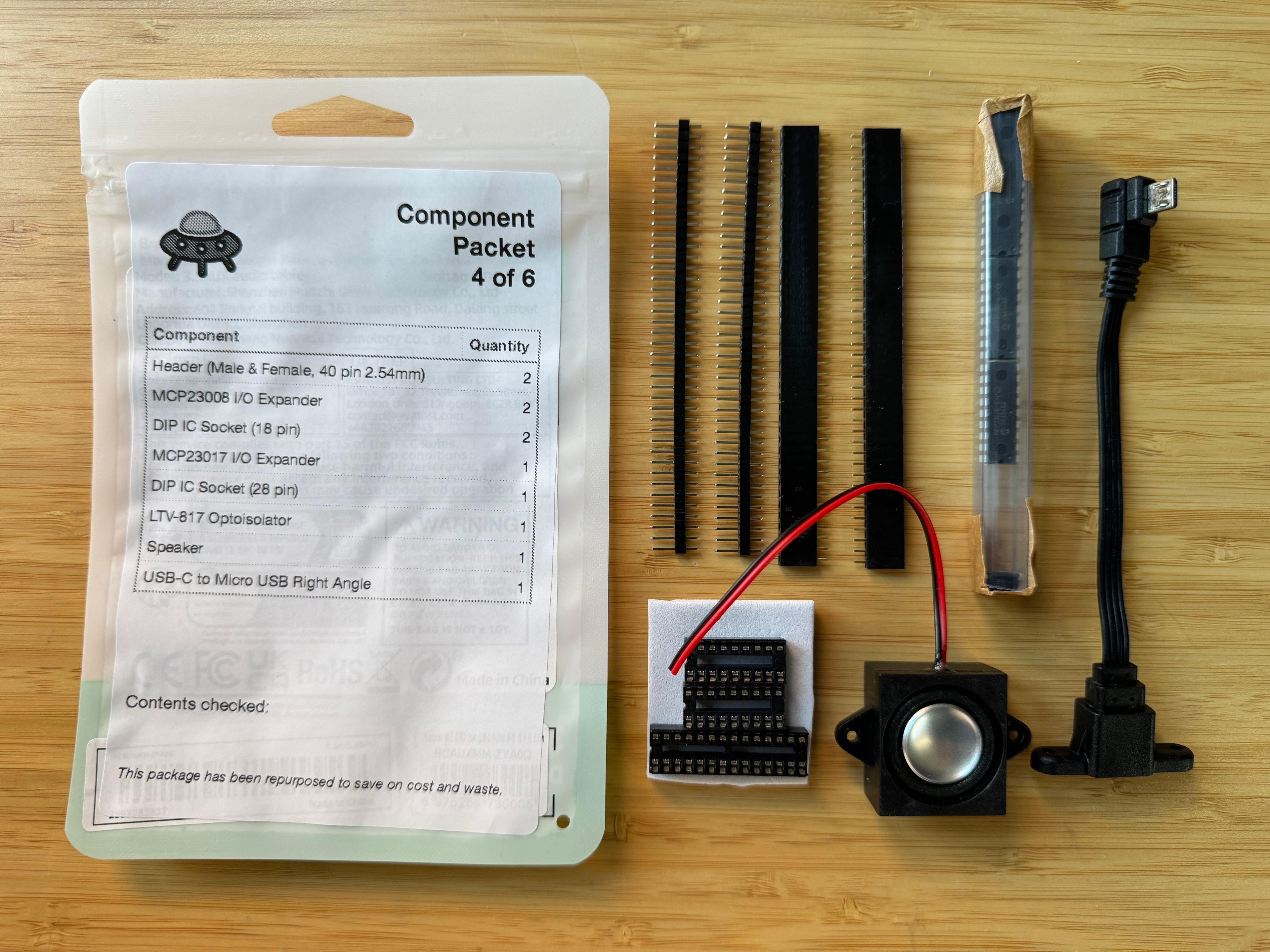

| Header (Male & Female, 40 pin 2.54mm) | 2 |
| MCP23008 I/O Expander | 2 |
| MCP23017 I/O Expander | 1 |
| DIP IC Socket (18 pin) | 2 |
| DIP IC Socket (28 pin) | 1 |
| LTV-817 Optoisolator | 1 |

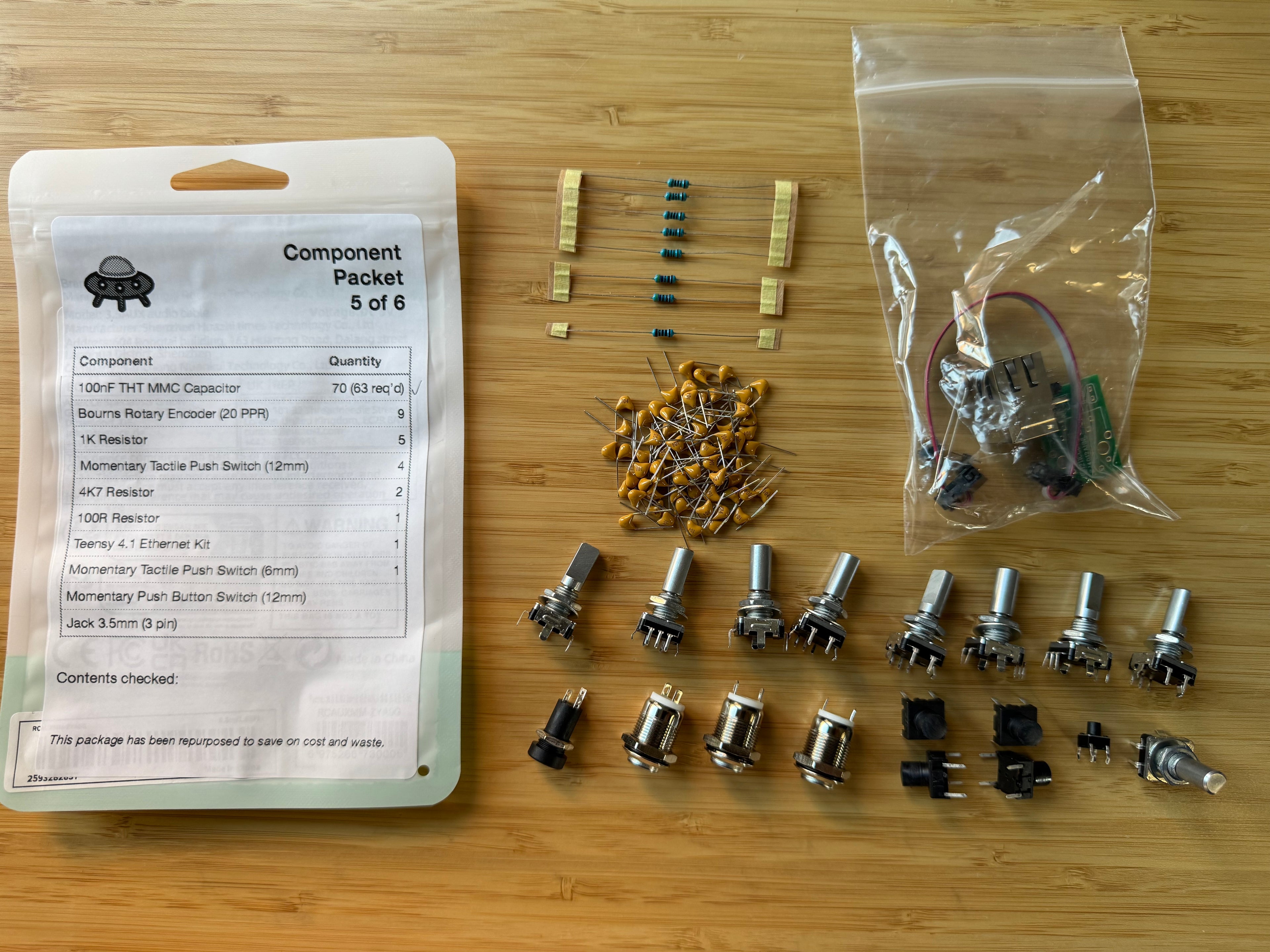

| 100nF THT MMC Capacitor | 63 |
| 1K Resistor | 5 |
| 4K4 Resistor | 2 |
| 100R Resistor | 1 |

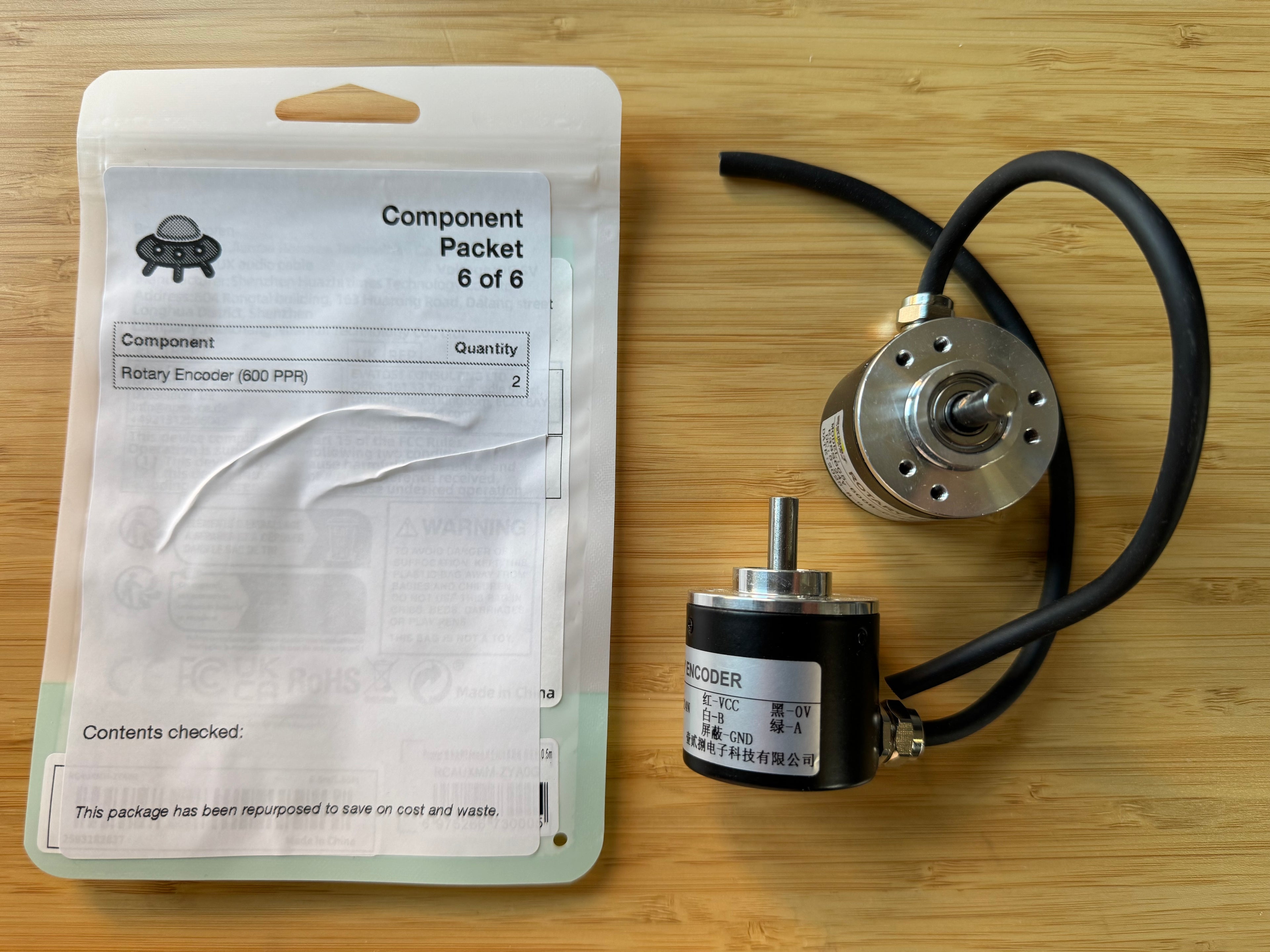

| Rotary Encoder (600 PPR) | 2 |
| M3 screws (for rotary encoder) | 6 |
| 32mm Knob (for rotary encoder) | 2 |
| Bourns Rotary Encoder (20 PPR) & Nuts/Washers | 9 |
| Additional Nuts for Bourns Rotary Encoder | 9 |

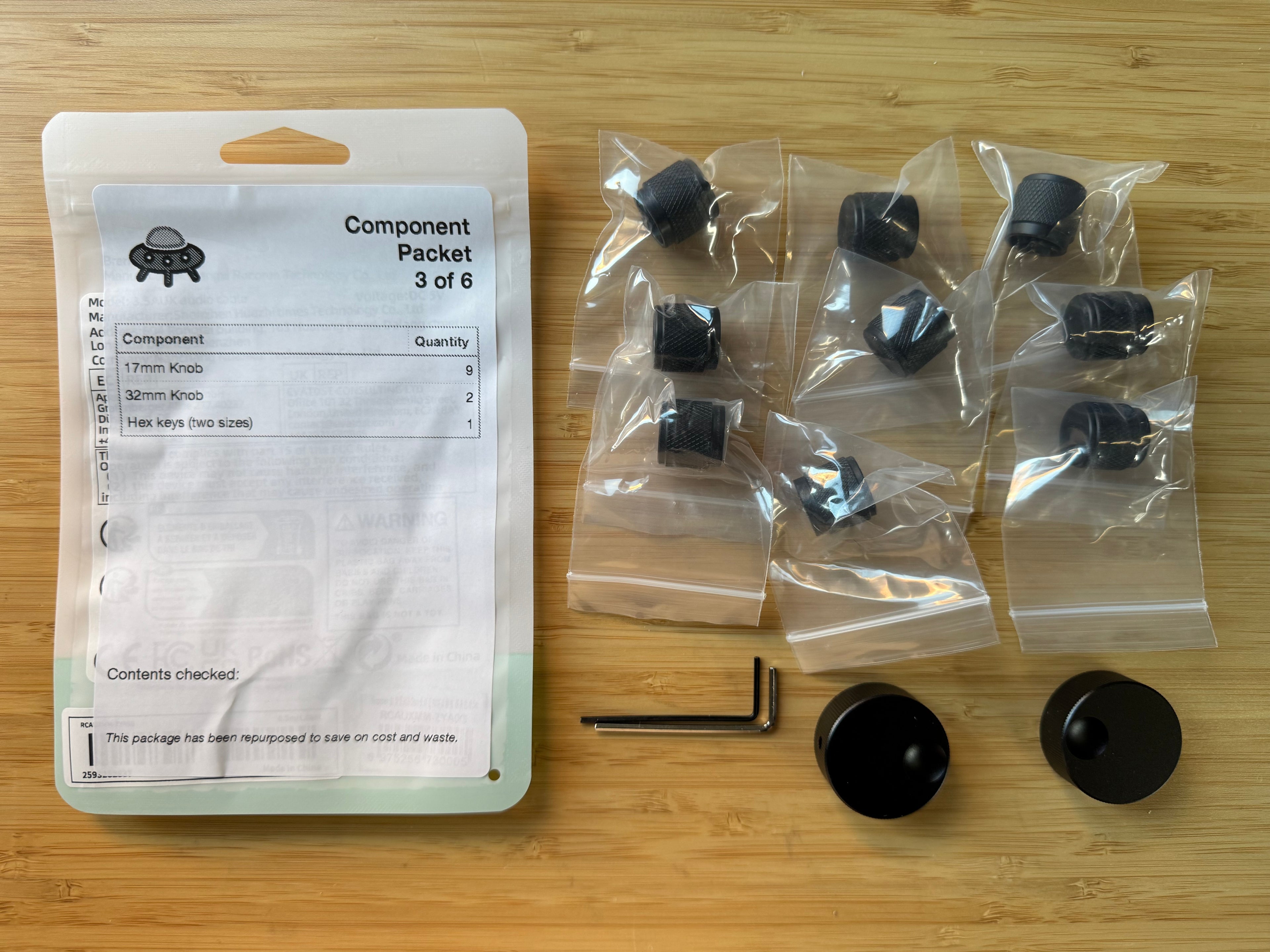

| 17mm Knob (for bourns rotary encoder) | 9 |
| Hex keys (two sizes) | 1 |

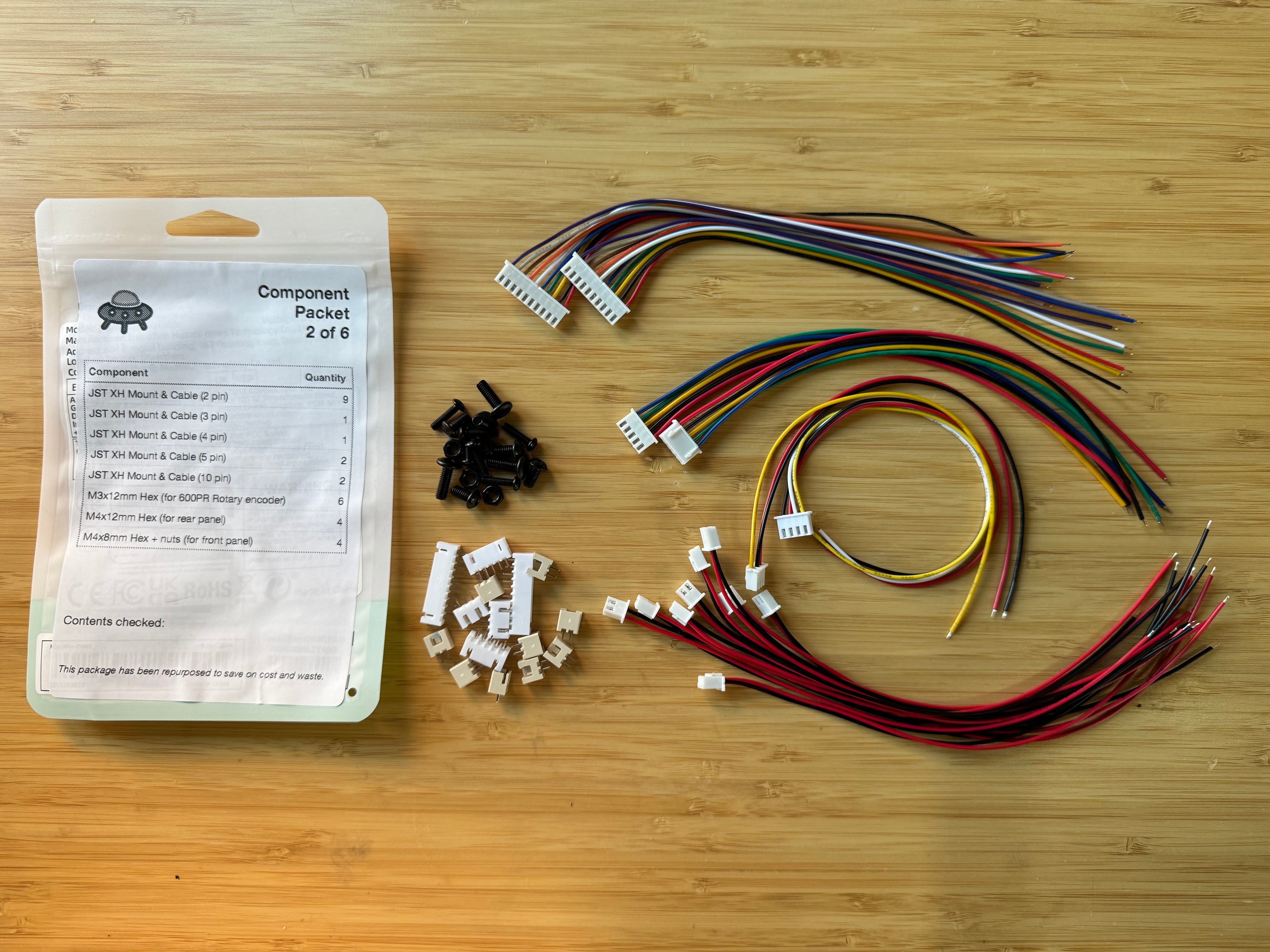

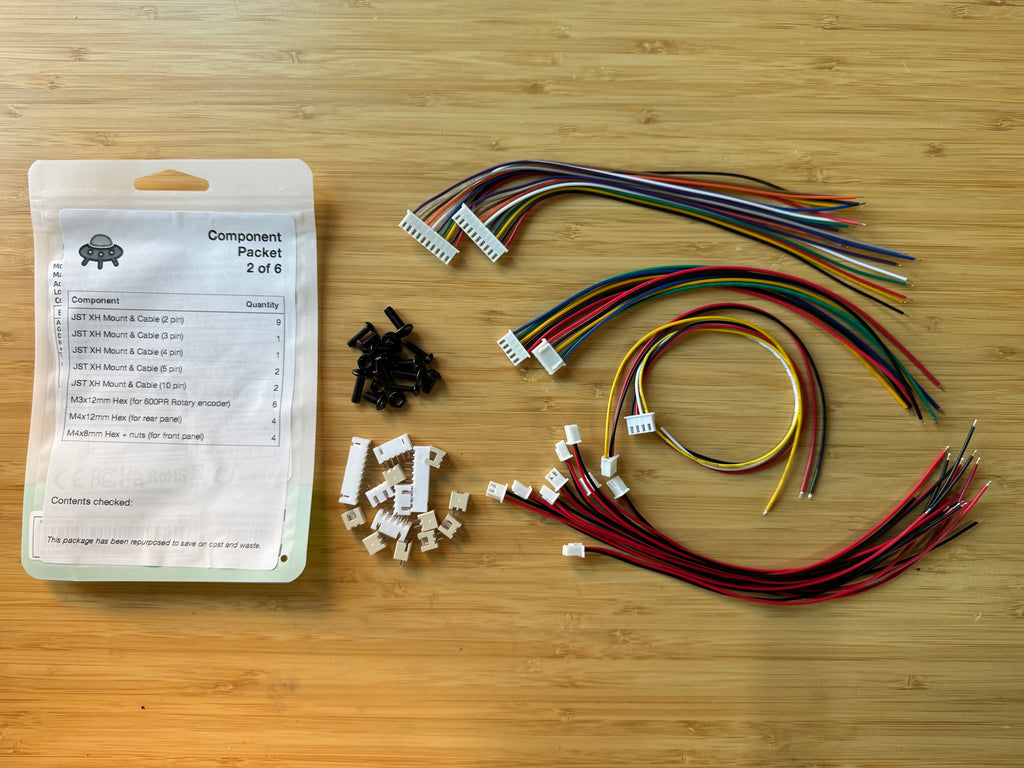

| JST XH Mount & Cable (2 pin) | 9 |
| JST XH Mount & Cable (3 pin) | 1 |
| JST XH Mount & Cable (4 pin) | 1 |
| JST XH Mount & Cable (5 pin) | 2 |
| JST XH Mount & Cable (10 pin) | 2 |
| Speaker | 1 |
| USB-C to Micro USB (Right Angle) | 1 |
|
Momentary Push Button Switch (12mm) |
3 (default) |
|
Jack 3.5mm (3 pin) |
1 (default) |
Shipping outside of the UK
US
I have updated US prices to account for the 10% duty/tariff - this will be paid at dispatch time and all orders will be sent by Royal Mail International Tracked.
Everywhere else
Each country has different rules and I am not able to update these dynamically during checkout. Any fees required during import to your country will be handled by the shipping provider.
International shipping is provided by either Royal Mail International Tracked or DPD Direct Lite.
This duty calculator can be used to generate an estimate.
