KXUSBC2 Assembled PCB

Name: KXUSBC2 Assembled PCB
Brand: g7ufo.radio
SKU: KXUSBC_PCB
Price: 50.00 GBP
Availability: InStock

£50.00 GBP

Shipping calculated at checkout.

Preorder updates are published in this blog.

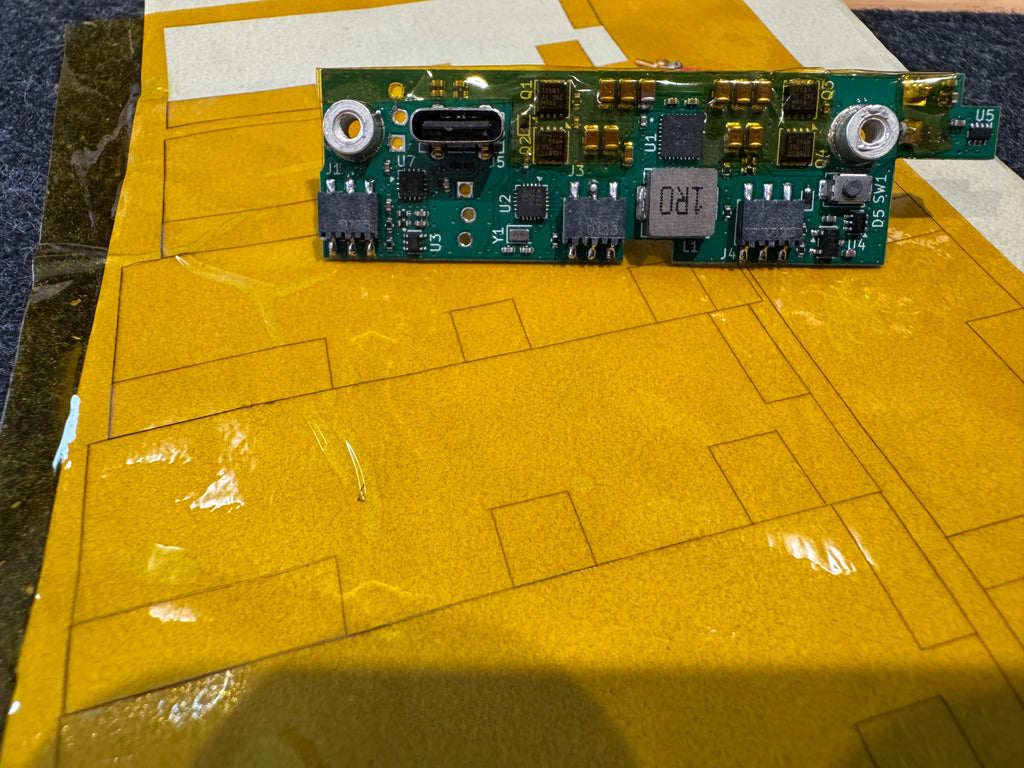

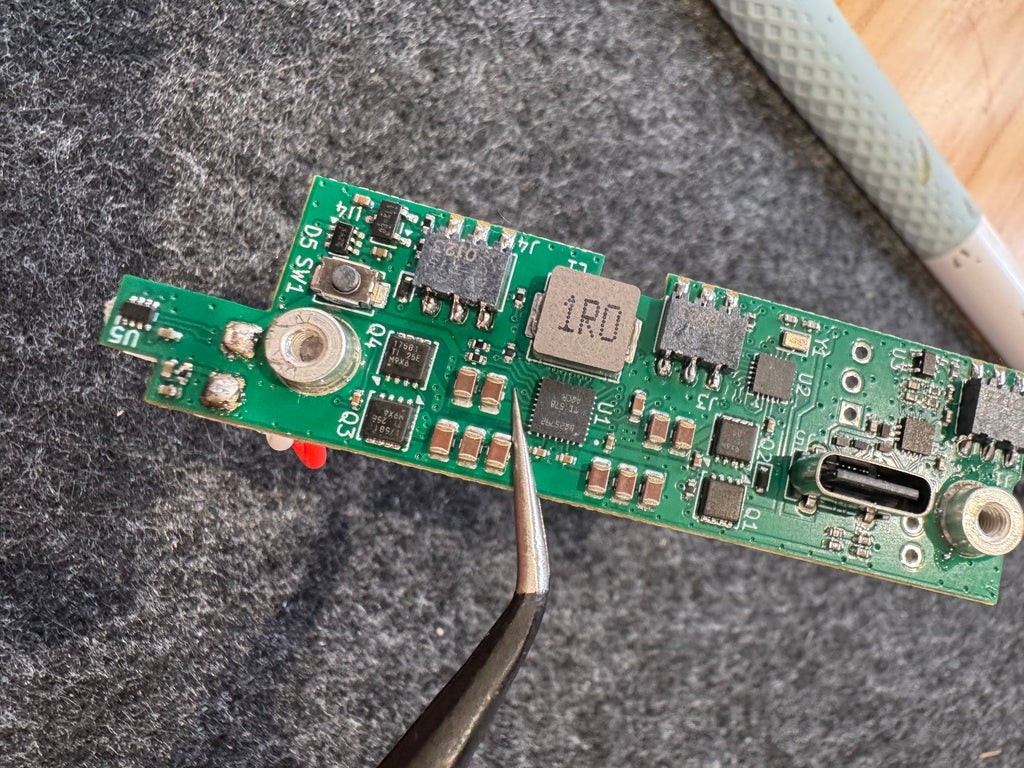

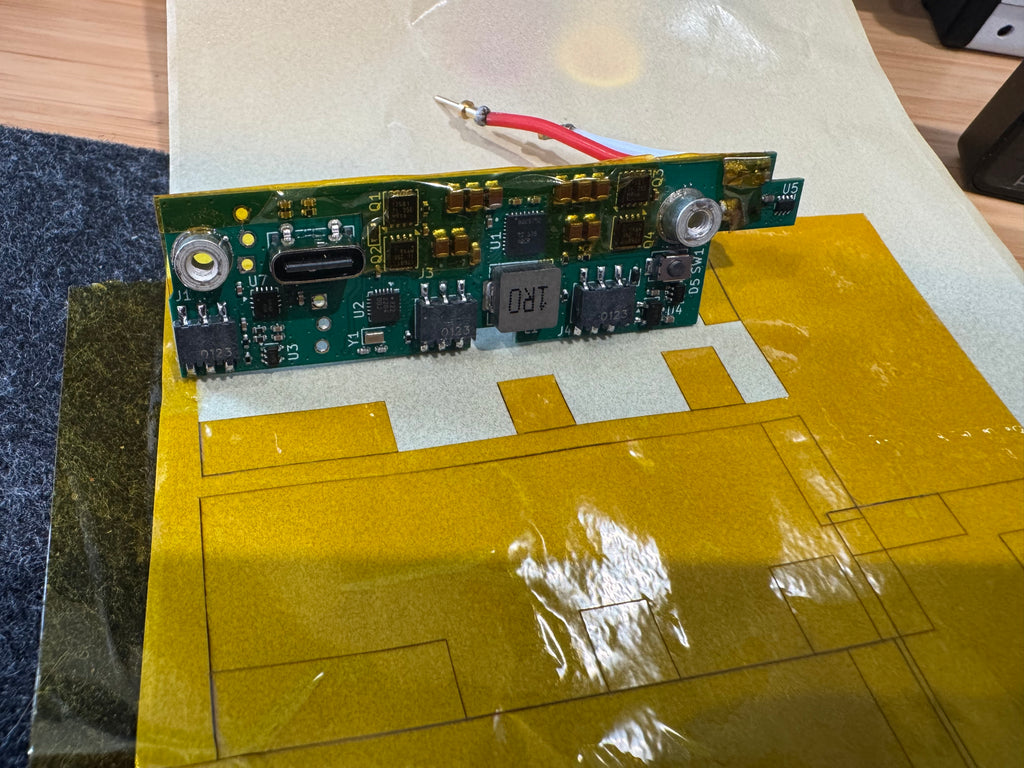

This product is the fully assembled KXUSBC2 PCB. If you'd like the PCB and panel bundle please find that here.

KI6NAZ - HRCC

You are purchasing and installing the KXUSBC2 at your own risk; I won't take responsibility if your KX2, phone, charger, battery, etc. get fried due to this board, your house burns down, or if you unexpectedly end up with an empty battery. You might lose your warranty on the KX2 by using this board.

Elecraft ® is a registered trademark of Elecraft, Inc. This project is not affiliated with or endorsed by Elecraft.

License

https://github.com/manuelkasper/kxusbc2

Installing the KXUSBC2 is quite simple and similar to the procedure for the KXIBC2.

Open the back of the KX2.
Remove the original left side panel (4 screws).
Plug the KXUSBC2 into the slot reserved for the KXIBC2/KXIO2.

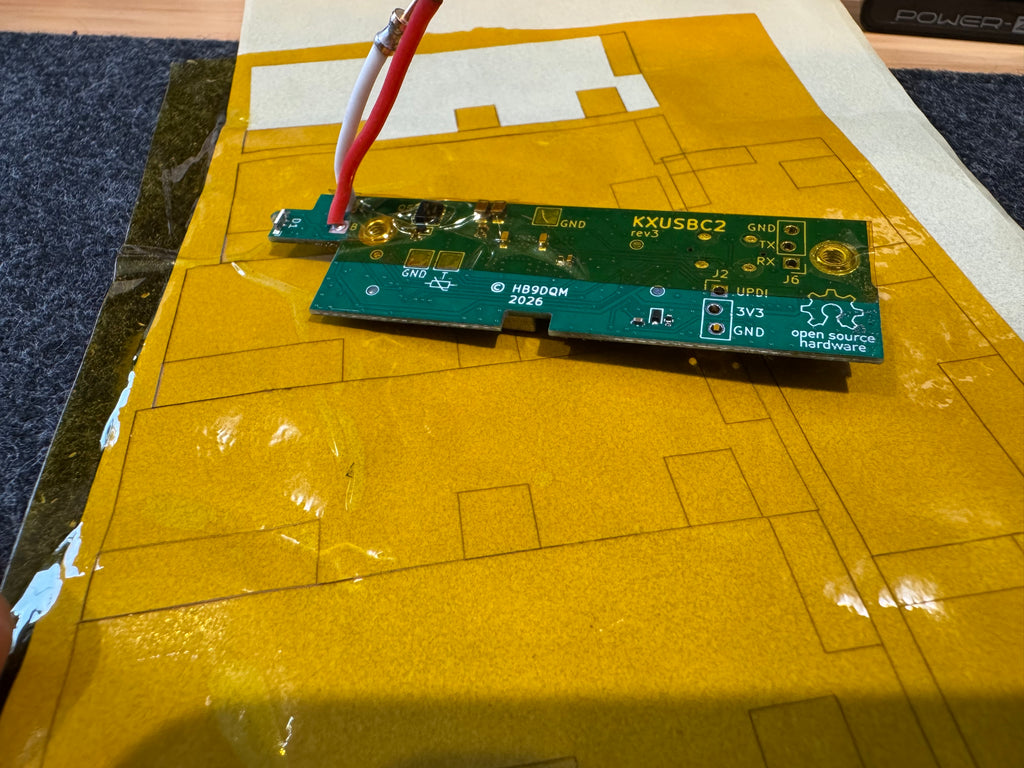

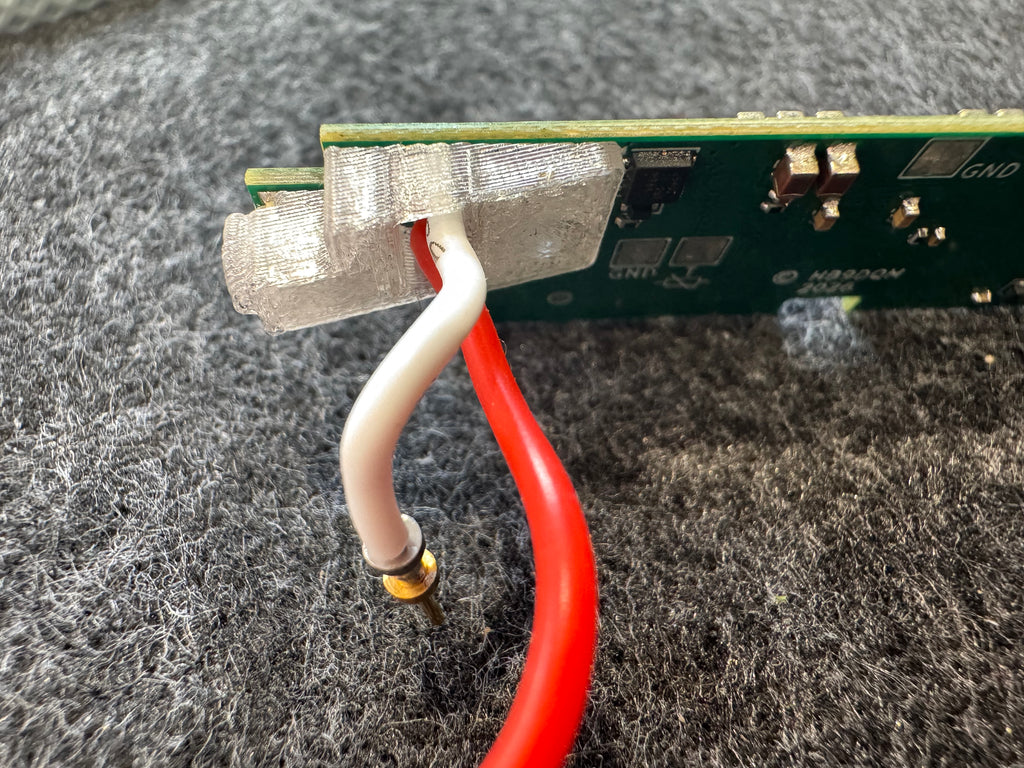

Solder two wires from the E and B pads on the KX2 RF PCB to the KXUSBC2 (same procedure as for installing an official KXIBC2, see manual). If you have a KX2 with a factory installed KXIBC2, there should already be two pin sockets in place that you can simply plug into, no soldering required.
Install the replacement left side panel (4 screws).

Instead of using a replacement side panel, an oblong USB-C hole can also be drilled into the original side panel.

US

Store prices have been updated to account for the additional 15% duty/tariff. This will be paid at dispatch time and all orders will be sent by Royal Mail International Tracked.

Everywhere else

Each country has different rules and I am not able to update these dynamically during checkout. Any fees required during import to your country will be handled by the shipping provider.

International shipping is provided Royal Mail International Tracked.

This duty calculator can be used to generate an estimate.
